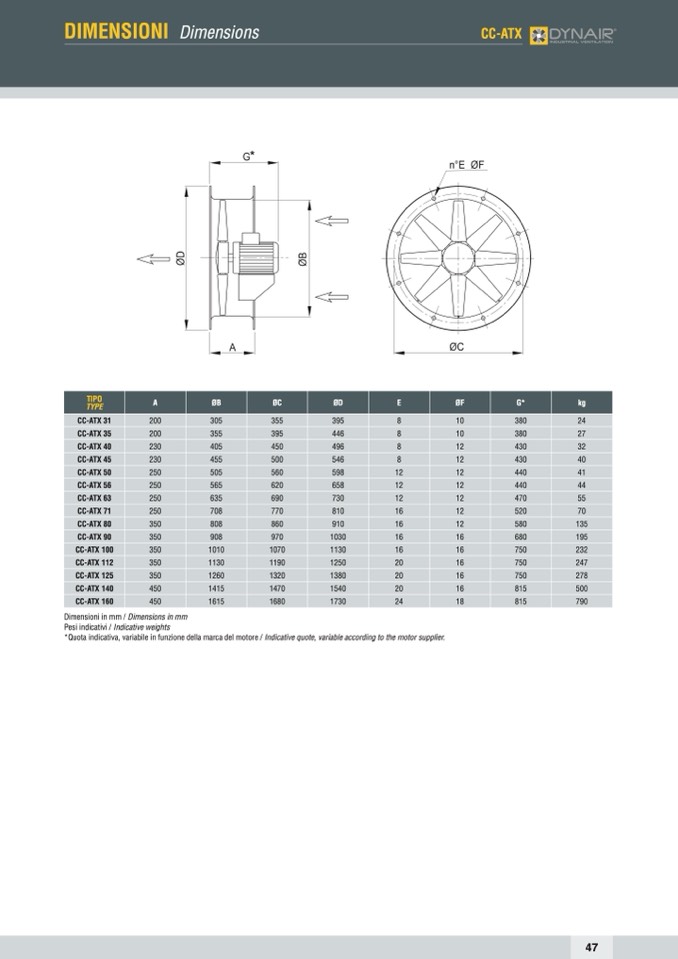

DIMENSIONI Dimensions
CC-ATX
*
TIPO
TYPE
A ØB ØC ØD E
ØF
G*
kg
CC-ATX 31 200 305 355 395 8
10
380
24
CC-ATX 35 200 355 395 446 8
10
380
27
CC-ATX 40 230 405 450 496 8
12
430
32
CC-ATX 45 230 455 500 546 8
12
430
40
CC-ATX 50 250 505 560 598 12
12
440
41
CC-ATX 56 250 565 620 658 12
12
440
44
CC-ATX 63 250 635 690 730 12
12
470
55
CC-ATX 71 250 708 770 810 16
12
520
70
CC-ATX 80 350 808 860 910 16
12
580
135
CC-ATX 90 350 908 970 1030 16
16
680
195
CC-ATX 100 350 1010 1070 1130 16
16
750
232
CC-ATX 112 350 1130 1190 1250 20
16
750
247
CC-ATX 125 350 1260 1320 1380 20
16
750
278
CC-ATX 140 450 1415 1470 1540 20
16
815
500
CC-ATX 160 450 1615 1680 1730 24
18
815
790
Dimensioni in mm / Dimensions in mm
Pesi indicativi / Indicative weights
*Quota indicativa, variabile in funzione della marca del motore / Indicative quote, variable according to the motor supplier.
