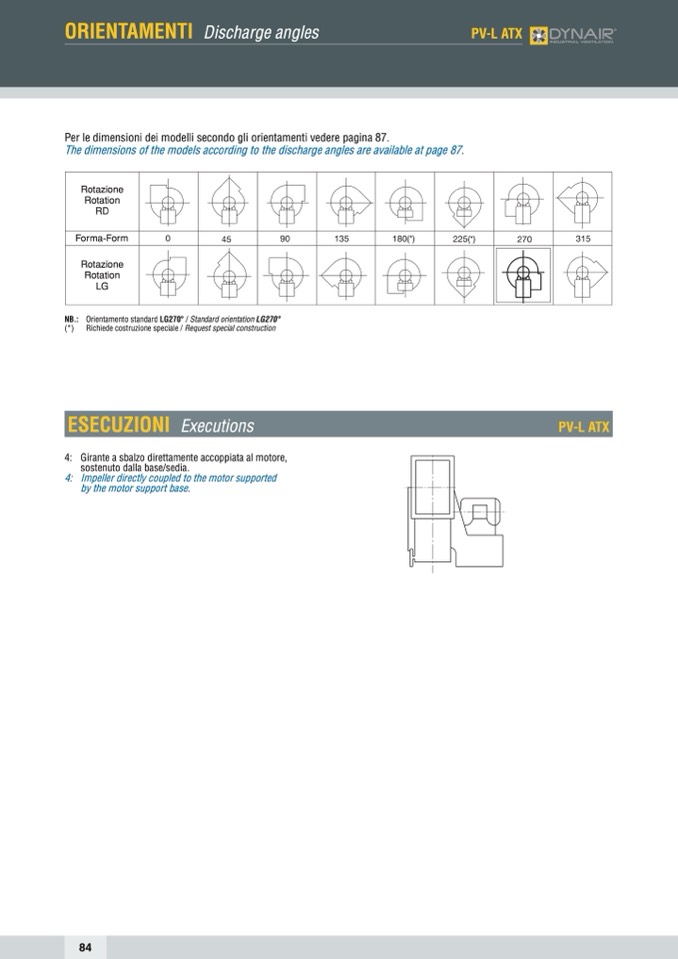

ORIENTAMENTI Discharge angles

PV-L ATX

Per le dimensioni dei modelli secondo gli orientamenti vedere pagina 87.

The dimensions of the models according to the discharge angles are available at page 87.

Rotazione

Rotation

LG

NB.: Orientamento standard LG270° / Standard orientation LG270°

(*) Richiede costruzione speciale / Request special construction

ESECUZIONI Executions

4: Girante a sbalzo direttamente accoppiata al motore,

sostenuto dalla base/sedia.

4: Impeller directly coupled to the motor supported

by the motor support base.

Rotazione

Rotation

RD

Forma-Form

Altezza-Height

PV-L ATX
