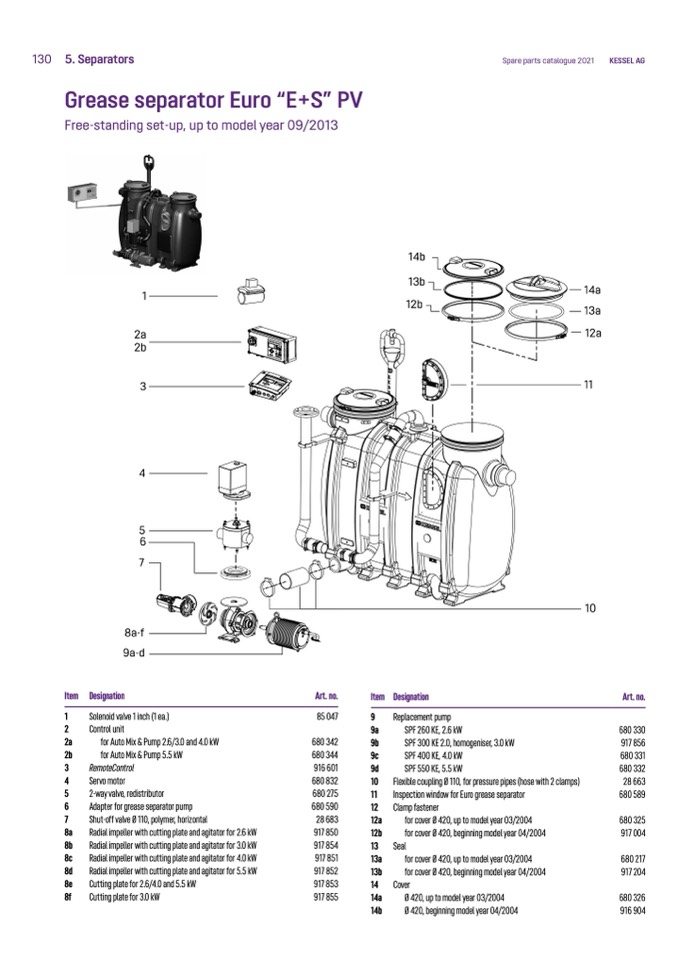

130 5. Separators

Grease separator Euro “E+S” PV

Free-standing set-up, up to model year 09/2013

Spare parts catalogue 2021

KESSEL AG

1

2a

2b

3

4

5

6

7

8a-f

9a-d

Item Designation

1

Solenoid valve 1 inch (1 ea.)

2

Control unit

2a

for Auto Mix & Pump 2.6/3.0 and 4.0 kW

2b

for Auto Mix & Pump 5.5 kW

3

RemoteControl

4

Servo motor

5

2-way valve, redistributor

6

Adapter for grease separator pump

7

Shut-off valve Ø 110, polymer, horizontal

8a

Radial impeller with cutting plate and agitator for 2.6 kW

8b

Radial impeller with cutting plate and agitator for 3.0 kW

8c

Radial impeller with cutting plate and agitator for 4.0 kW

8d

Radial impeller with cutting plate and agitator for 5.5 kW

8e

Cutting plate for 2.6/4.0 and 5.5 kW

8f

Cutting plate for 3.0 kW

14b

13b

12b

14a

13a

12a

11

Art. no.

85 047

680 342

680 344

916 601

680 832

680 275

680 590

28 683

917 850

917 854

917 851

917 852

917 853

917 855

Item Designation

9

Replacement pump

9a

SPF 260 KE, 2.6 kW

9b

SPF 300 KE 2.0, homogeniser, 3.0 kW

9c

SPF 400 KE, 4.0 kW

9d

SPF 550 KE, 5.5 kW

10 Flexible coupling Ø 110, for pressure pipes (hose with 2 clamps)

11

Inspection window for Euro grease separator

12 Clamp fastener

12a

for cover Ø 420, up to model year 03/2004

12b

for cover Ø 420, beginning model year 04/2004

13 Seal

13a

for cover Ø 420, up to model year 03/2004

13b

for cover Ø 420, beginning model year 04/2004

14 Cover

14a

Ø 420, up to model year 03/2004

14b

Ø 420, beginning model year 04/2004

Art. no.

680 330

917 856

680 331

680 332

28 663

680 589

680 325

917 004

680 217

917 204

680 326

916 904

10
