KESSEL AG

Spare parts catalogue 2021

5. Separators 131

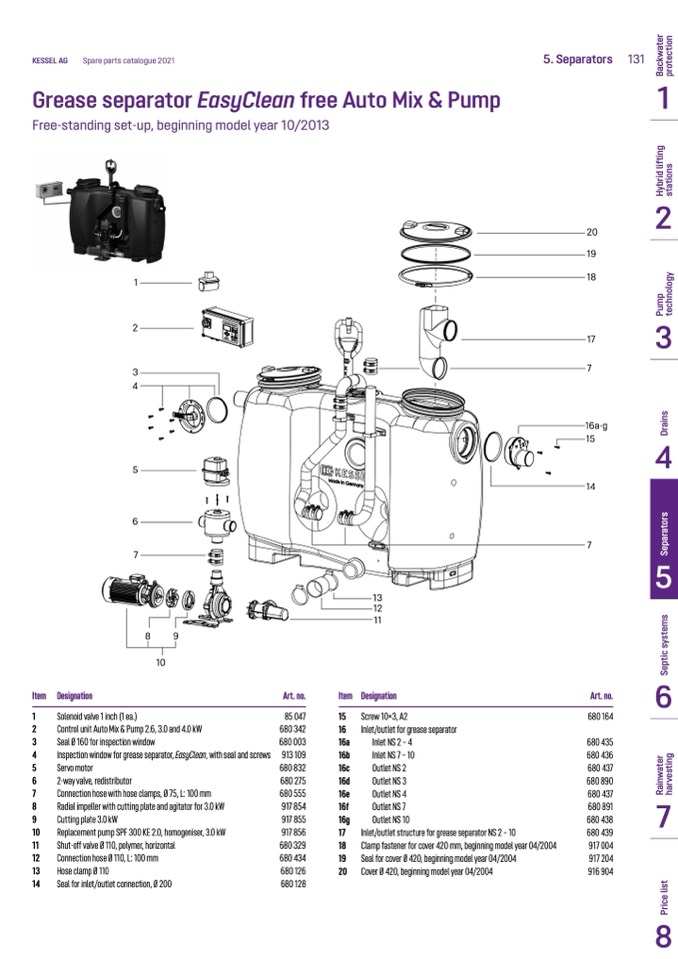

Grease separator EasyClean free Auto Mix & Pump

1

Free-standing set-up, beginning model year 10/2013

Item Designation

Art. no.

85 047

680 342

680 003

913 109

680 832

680 275

680 555

917 854

917 855

917 856

680 329

680 434

680 126

680 128

Art. no.

6

680 164

680 435

680 436

680 437

680 890

680 437

680 891

7

680 438

680 439

917 004

917 204

916 904

1

20

2

19

9

18

2

3

17

3

4

5

6

7

8

9

10

13

12

11

Item Designation

15 Screw 10×3, A2

16 Inlet/outlet for grease separator

16a

Inlet NS 2 – 4

16b

Inlet NS 7 – 10

16c

Outlet NS 2

16d

Outlet NS 3

16e

Outlet NS 4

16f

Outlet NS 7

16g

Outlet NS 10

17

Inlet/outlet structure for grease separator NS 2 – 10

18 Clamp fastener for cover 420 mm, beginning model year 04/2004

19 Seal for cover Ø 420, beginning model year 04/2004

20 Cover Ø 420, beginning model year 04/2004

7

16a-g

15

4

14

7

5

1

Solenoid valve 1 inch (1 ea.)

2

Control unit Auto Mix & Pump 2.6, 3.0 and 4.0 kW

3

Seal Ø 160 for inspection window

4

Inspection window for grease separator, EasyClean, with seal and screws

5

Servo motor

6

2-way valve, redistributor

7

Connection hose with hose clamps, Ø 75, L: 100 mm

8

Radial impeller with cutting plate and agitator for 3.0 kW

9

Cutting plate 3.0 kW

10

Replacement pump SPF 300 KE 2.0, homogeniser, 3.0 kW

11

Shut-off valve Ø 110, polymer, horizontal

12

Connection hose Ø 110, L: 100 mm

13

Hose clamp Ø 110

14

Seal for inlet/outlet connection, Ø 200

8
