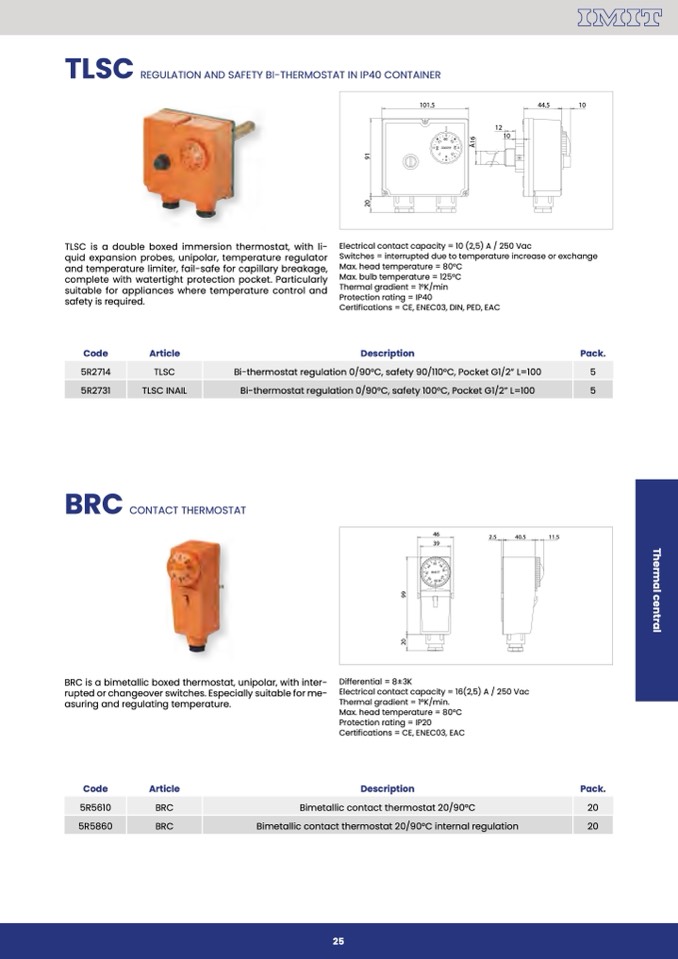

TLSC

REGULATION AND SAFETY BI-THERMOSTAT IN IP40 CONTAINER

101.5

IMIT CONTROL SYSTEM

44.5

10

TLSC is a double boxed immersion thermostat, with li-

quid expansion probes, unipolar, temperature regulator

and temperature limiter, fail-safe for capillary breakage,

complete with watertight protection pocket. Particularly

suitable for appliances where temperature control and

safety is required.

Electrical contact capacity = 10 (2,5) A / 250 Vac

Switches = interrupted due to temperature increase or exchange

Max. head temperature = 80°C

Max. bulb temperature = 125°C

Thermal gradient = 1°K/min

Protection rating = IP40

Certifications = CE, ENEC03, DIN, PED, EAC

Code

5R2714

5R2731

Article

TLSC

TLSC INAIL

Description

Bi-thermostat regulation 0/90°C, safety 90/110°C, Pocket G1/2” L=100

Bi-thermostat regulation 0/90°C, safety 100°C, Pocket G1/2” L=100

Pack.

5

5

4

0

80

6

0

BRC

CONTACT THERMOSTAT

BRC is a bimetallic boxed thermostat, unipolar, with inter-

rupted or changeover switches. Especially suitable for me-

asuring and regulating temperature.

46

39

IMIT

90

2.5

40.5

11.5

0

5

0

3

0

2

0

ĀC

2

0

9

9

2

0

9

1

9

0

A

̆

1

6

Code

Article

5R5610

BRC

5R5860

BRC

Differential = 8±3K

Electrical contact capacity = 16(2,5) A / 250 Vac

Thermal gradient = 1°K/min.

Max. head temperature = 80°C

Protection rating = IP20

Certifications = CE, ENEC03, EAC

Description

Bimetallic contact thermostat 20/90°C

Bimetallic contact thermostat 20/90°C internal regulation

Pack.

20

20

25

60

12

10
