IMIT CONTROL SYSTEM

IMIT CONTROL SYSTEM

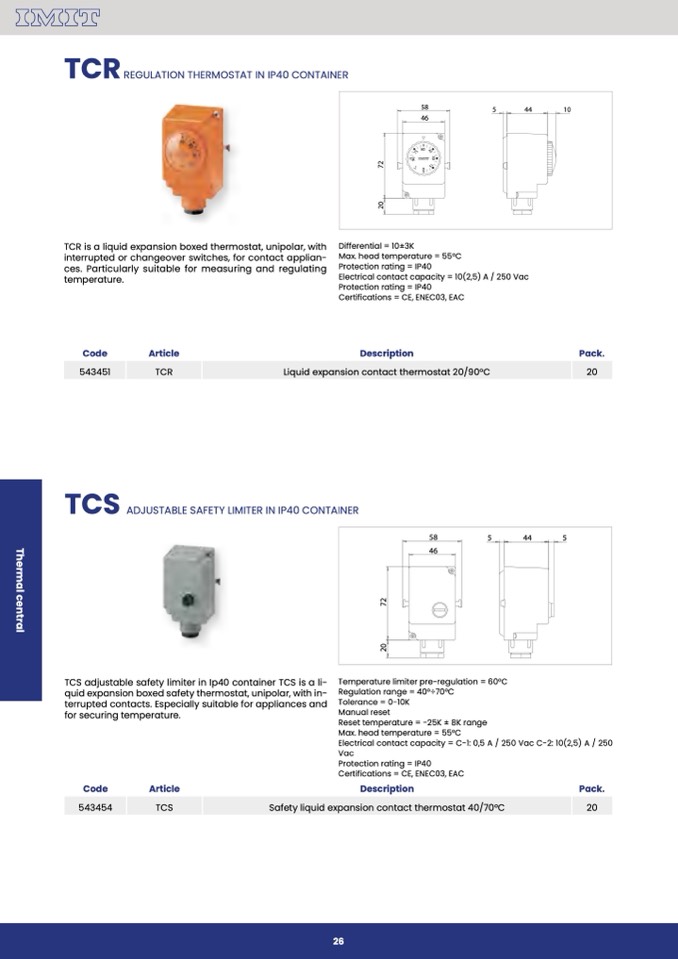

REGULATION THERMOSTAT IN IP40 CONTAINER

TCR

TCR is a liquid expansion boxed thermostat, unipolar, with

interrupted or changeover switches, for contact applian-

ces. Particularly suitable for measuring and regulating

temperature.

Code

Article

TCS

ADJUSTABLE SAFETY LIMITER IN IP40 CONTAINER

58

46

60

5

44

10

Differential = 10±3K

Max. head temperature = 55°C

Protection rating = IP40

Electrical contact capacity = 10(2,5) A / 250 Vac

Protection rating = IP40

Certifications = CE, ENEC03, EAC

Description

Pack.

543451

TCR

Liquid expansion contact thermostat 20/90°C

20

58

5

44

5

TCS adjustable safety limiter in Ip40 container TCS is a li-

quid expansion boxed safety thermostat, unipolar, with in-

terrupted contacts. Especially suitable for appliances and

for securing temperature.

Code

Article

Temperature limiter pre-regulation = 60°C

Regulation range = 40°÷70°C

Tolerance = 0-10K

Manual reset

Reset temperature = -25K ± 8K range

Max. head temperature = 55°C

Electrical contact capacity = C-1: 0,5 A / 250 Vac C-2: 10(2,5) A / 250

Vac

Protection rating = IP40

Certifications = CE, ENEC03, EAC

Description

Pack.

46

543454

TCS

Safety liquid expansion contact thermostat 40/70°C

20
