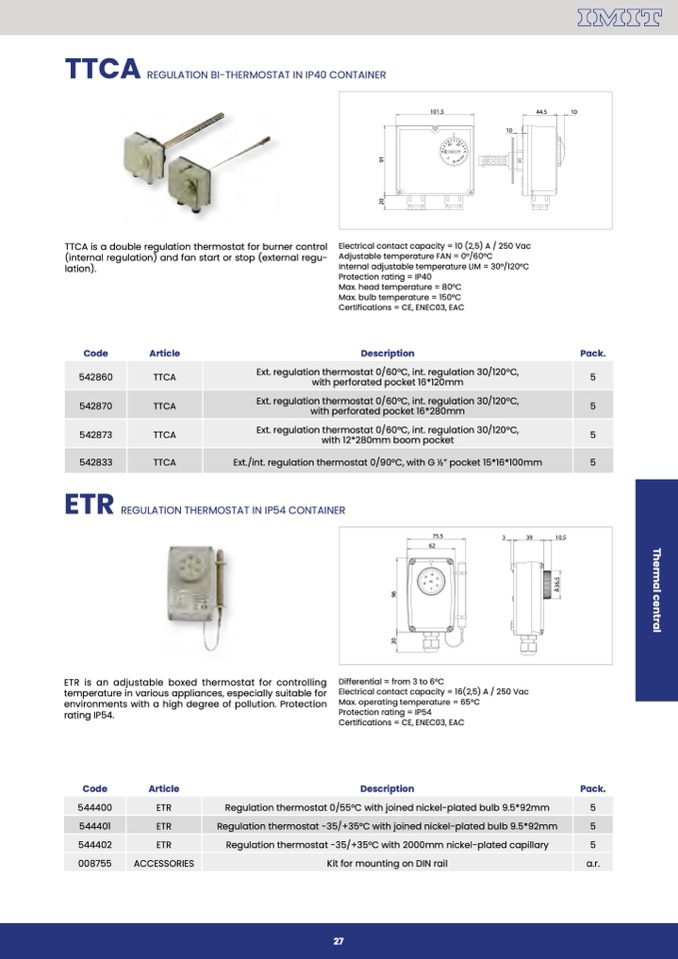

TTCA

REGULATION BI-THERMOSTAT IN IP40 CONTAINER

IMIT CONTROL SYSTEM

TTCA is a double regulation thermostat for burner control

(internal regulation) and fan start or stop (external regu-

lation).

Code

Article

542860

TTCA

542870

TTCA

542873

TTCA

542833

TTCA

Electrical contact capacity = 10 (2,5) A / 250 Vac

Adjustable temperature FAN = 0°/60°C

Internal adjustable temperature LIM = 30°/120°C

Protection rating = IP40

Max. head temperature = 80°C

Max. bulb temperature = 150°C

Certifications = CE, ENEC03, EAC

Description

Ext. regulation thermostat 0/60°C, int. regulation 30/120°C,

with perforated pocket 16*120mm

Ext. regulation thermostat 0/60°C, int. regulation 30/120°C,

with perforated pocket 16*280mm

Ext. regulation thermostat 0/60°C, int. regulation 30/120°C,

with 12*280mm boom pocket

Pack.

5

5

5

5

ETR

REGULATION THERMOSTAT IN IP54 CONTAINER

30

4

0

2

0

5

0

1

0

0

T

h

e

r

m

a

l

c

e

n

t

r

a

l

2

0

9

6

A

̆

3

6

.

5

2

0

9

1

6

0

ETR is an adjustable boxed thermostat for controlling

temperature in various appliances, especially suitable for

environments with a high degree of pollution. Protection

rating IP54.

Differential = from 3 to 6°C

Electrical contact capacity = 16(2,5) A / 250 Vac

Max. operating temperature = 65°C

Protection rating = IP54

Certifications = CE, ENEC03, EAC

Description

Code

Article

544400

ETR

544401

ETR

544402

ETR

008755

ACCESSORIES

Regulation thermostat 0/55°C with joined nickel-plated bulb 9.5*92mm

Regulation thermostat -35/+35°C with joined nickel-plated bulb 9.5*92mm

Regulation thermostat -35/+35°C with 2000mm nickel-plated capillary

Kit for mounting on DIN rail

Pack.

5

5

5

a.r.

Ext./int. regulation thermostat 0/90°C, with G 1⁄2” pocket 15*16*100mm

27

101.5

44.5

10

75.5

62

ĀC

3

39

10.5

10
