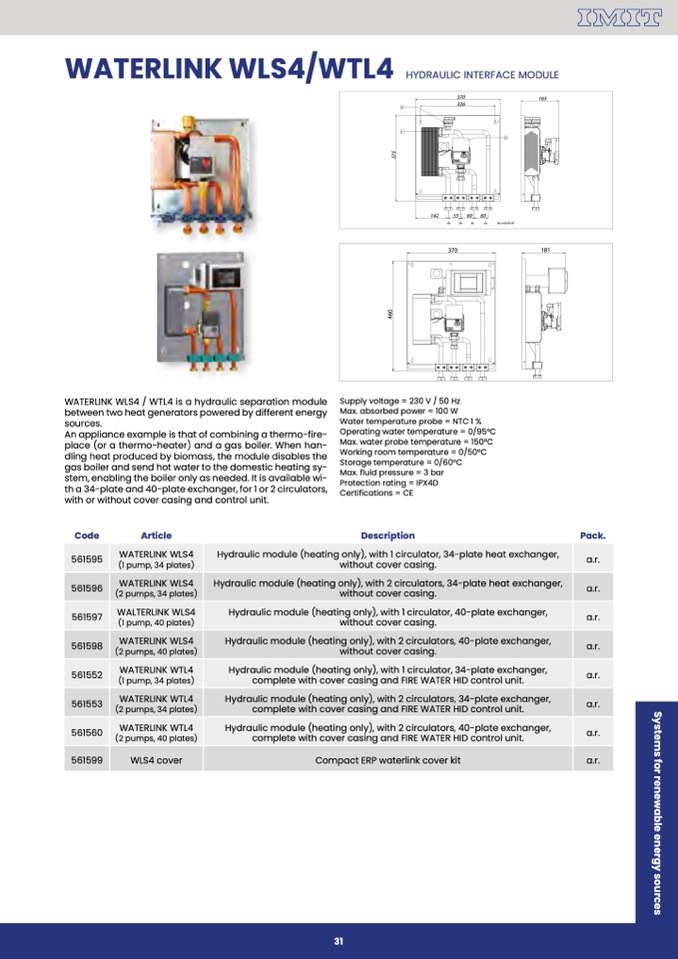

WATERLINK WLS4/WTL4

HYDRAULIC INTERFACE MODULE

370

165

IMIT CONTROL SYSTEM

WATERLINK WLS4 / WTL4 is a hydraulic separation module

between two heat generators powered by different energy

sources.

An appliance example is that of combining a thermo-fire-

place (or a thermo-heater) and a gas boiler. When han-

dling heat produced by biomass, the module disables the

gas boiler and send hot water to the domestic heating sy-

stem, enabling the boiler only as needed. It is available wi-

th a 34-plate and 40-plate exchanger, for 1 or 2 circulators,

with or without cover casing and control unit.

Supply voltage = 230 V / 50 Hz

Max. absorbed power = 100 W

Water temperature probe = NTC 1 %

Operating water temperature = 0/95°C

Max. water probe temperature = 150°C

Working room temperature = 0/50°C

Storage temperature = 0/60°C

Max. fluid pressure = 3 bar

Protection rating = IPX4D

Certifications = CE

Description

Code

561595

561596

561597

561598

561552

561553

561560

561599

Article

WATERLINK WLS4

(1 pump, 34 plates)

WATERLINK WLS4

(2 pumps, 34 plates)

WALTERLINK WLS4

(1 pump, 40 plates)

WATERLINK WLS4

(2 pumps, 40 plates)

WATERLINK WTL4

(1 pump, 34 plates)

WATERLINK WTL4

(2 pumps, 34 plates)

WATERLINK WTL4

(2 pumps, 40 plates)

WLS4 cover

Pack.

2

1

326

142

55

60

60

Hydraulic module (heating only), with 1 circulator, 34-plate heat exchanger,

a.r.

without cover casing.

Hydraulic module (heating only), with 2 circulators, 34-plate heat exchanger,

a.r.

without cover casing.

Hydraulic module (heating only), with 1 circulator, 40-plate exchanger,

a.r.

without cover casing.

Hydraulic module (heating only), with 2 circulators, 40-plate exchanger,

a.r.

without cover casing.

Hydraulic module (heating only), with 1 circulator, 34-plate exchanger,

a.r.

complete with cover casing and FIRE WATER HID control unit.

Hydraulic module (heating only), with 2 circulators, 34-plate exchanger,

a.r.

complete with cover casing and FIRE WATER HID control unit.

Hydraulic module (heating only), with 2 circulators, 40-plate exchanger,

a.r.

complete with cover casing and FIRE WATER HID control unit.

Compact ERP waterlink cover kit

a.r.

31

A

A

A

A

A=G3/4"

370

181

3
