HYDRAULIC INTERFACE MODULE

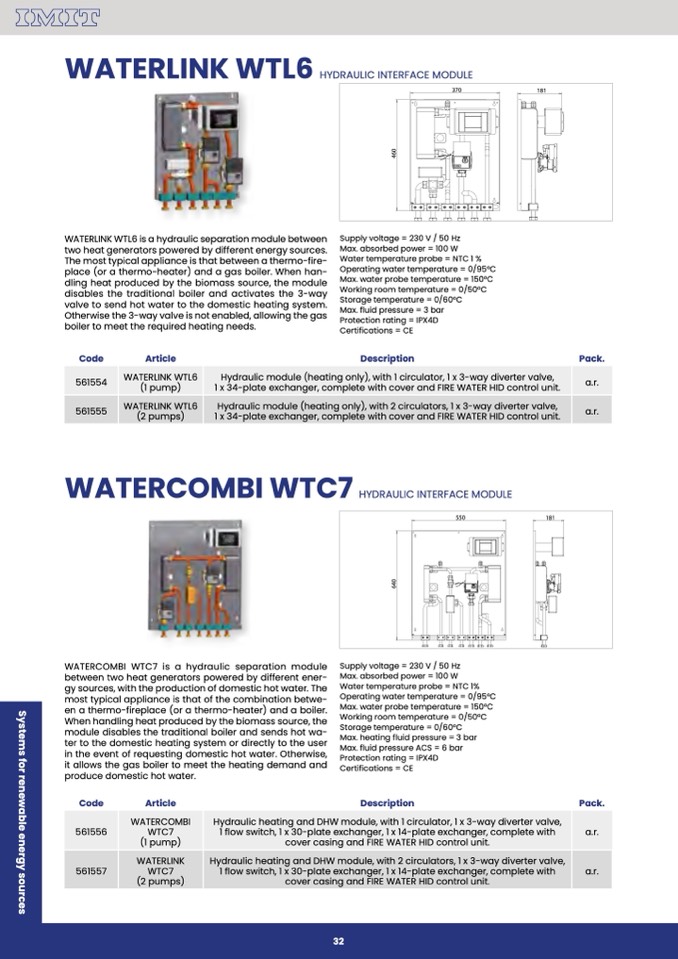

WATERLINK WTL6

WATERLINK WTL6 is a hydraulic separation module between

two heat generators powered by different energy sources.

The most typical appliance is that between a thermo-fire-

place (or a thermo-heater) and a gas boiler. When han-

dling heat produced by the biomass source, the module

disables the traditional boiler and activates the 3-way

valve to send hot water to the domestic heating system.

Otherwise the 3-way valve is not enabled, allowing the gas

boiler to meet the required heating needs.

Code

561554

561555

Article

WATERLINK WTL6

(1 pump)

WATERLINK WTL6

(2 pumps)

370

181

Supply voltage = 230 V / 50 Hz

Max. absorbed power = 100 W

Water temperature probe = NTC 1 %

Operating water temperature = 0/95°C

Max. water probe temperature = 150°C

Working room temperature = 0/50°C

Storage temperature = 0/60°C

Max. fluid pressure = 3 bar

Protection rating = IPX4D

Certifications = CE

Description

Pack.

6

4

0

4

6

0

WATERCOMBI WTC7 is a hydraulic separation module

between two heat generators powered by different ener-

gy sources, with the production of domestic hot water. The

most typical appliance is that of the combination betwe-

en a thermo-fireplace (or a thermo-heater) and a boiler.

When handling heat produced by the biomass source, the

module disables the traditional boiler and sends hot wa-

ter to the domestic heating system or directly to the user

in the event of requesting domestic hot water. Otherwise,

it allows the gas boiler to meet the heating demand and

produce domestic hot water.

Supply voltage = 230 V / 50 Hz

Max. absorbed power = 100 W

Water temperature probe = NTC 1%

Operating water temperature = 0/95°C

Max. water probe temperature = 150°C

Working room temperature = 0/50°C

Storage temperature = 0/60°C

Max. heating fluid pressure = 3 bar

Max. fluid pressure ACS = 6 bar

Protection rating = IPX4D

Certifications = CE

Description

Code

561556

561557

Article

WATERCOMBI

WTC7

(1 pump)

WATERLINK

WTC7

(2 pumps)

Pack.

Hydraulic module (heating only), with 1 circulator, 1 x 3-way diverter valve,

a.r.

1 x 34-plate exchanger, complete with cover and FIRE WATER HID control unit.

Hydraulic module (heating only), with 2 circulators, 1 x 3-way diverter valve,

a.r.

1 x 34-plate exchanger, complete with cover and FIRE WATER HID control unit.

WATERCOMBI WTC7

HYDRAULIC INTERFACE MODULE

550

181

Hydraulic heating and DHW module, with 1 circulator, 1 x 3-way diverter valve,

1 flow switch, 1 x 30-plate exchanger, 1 x 14-plate exchanger, complete with

a.r.

cover casing and FIRE WATER HID control unit.

Hydraulic heating and DHW module, with 2 circulators, 1 x 3-way diverter valve,

1 flow switch, 1 x 30-plate exchanger, 1 x 14-plate exchanger, complete with

a.r.

cover casing and FIRE WATER HID control unit.
