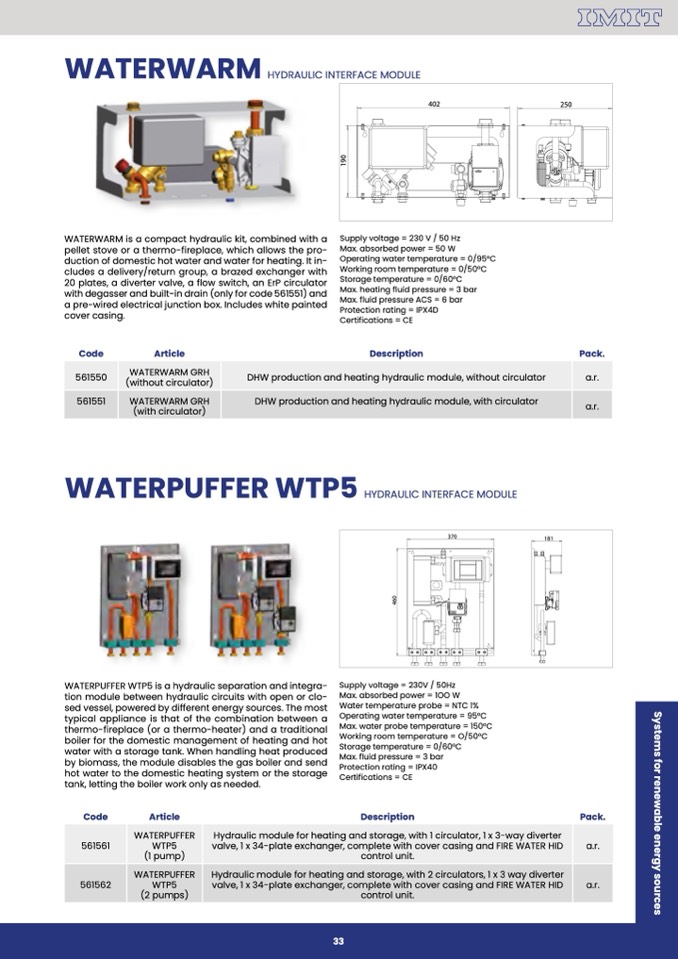

WATERWARM

HYDRAULIC INTERFACE MODULE

IMIT CONTROL SYSTEM

WATERWARM is a compact hydraulic kit, combined with a

pellet stove or a thermo-fireplace, which allows the pro-

duction of domestic hot water and water for heating. It in-

cludes a delivery/return group, a brazed exchanger with

20 plates, a diverter valve, a flow switch, an ErP circulator

with degasser and built-in drain (only for code 561551) and

a pre-wired electrical junction box. Includes white painted

cover casing.

Code

561550

561551

Article

WATERWARM GRH

(without circulator)

WATERWARM GRH

(with circulator)

Pack.

a.r.

a.r.

402

Supply voltage = 230 V / 50 Hz

Max. absorbed power = 50 W

Operating water temperature = 0/95°C

Working room temperature = 0/50°C

Storage temperature = 0/60°C

Max. heating fluid pressure = 3 bar

Max. fluid pressure ACS = 6 bar

Protection rating = IPX4D

Certifications = CE

Description

DHW production and heating hydraulic module, without circulator

DHW production and heating hydraulic module, with circulator

250

WATERPUFFER WTP5

HYDRAULIC INTERFACE MODULE

370

181

WATERPUFFER WTP5 is a hydraulic separation and integra-

tion module between hydraulic circuits with open or clo-

sed vessel, powered by different energy sources. The most

typical appliance is that of the combination between a

thermo-fireplace (or a thermo-heater) and a traditional

boiler for the domestic management of heating and hot

water with a storage tank. When handling heat produced

by biomass, the module disables the gas boiler and send

hot water to the domestic heating system or the storage

tank, letting the boiler work only as needed.

Supply voltage = 230V / 50Hz

Max. absorbed power = 1OO W

Water temperature probe = NTC 1%

Operating water temperature = 95°C

Max. water probe temperature = 150°C

Working room temperature = O/50°C

Storage temperature = 0/60°C

Max. fluid pressure = 3 bar

Protection rating = IPX40

Certifications = CE

Description

Code

561561

561562

Article

WATERPUFFER

WTP5

(1 pump)

WATERPUFFER

WTP5

(2 pumps)

Pack.

Hydraulic module for heating and storage, with 1 circulator, 1 x 3-way diverter

valve, 1 x 34-plate exchanger, complete with cover casing and FIRE WATER HID

a.r.

control unit.

Hydraulic module for heating and storage, with 2 circulators, 1 x 3 way diverter

valve, 1 x 34-plate exchanger, complete with cover casing and FIRE WATER HID

a.r.

control unit.

33
