Assembly and connection

ES 5941Z

2

Assembly and connection

2.1

Assembly

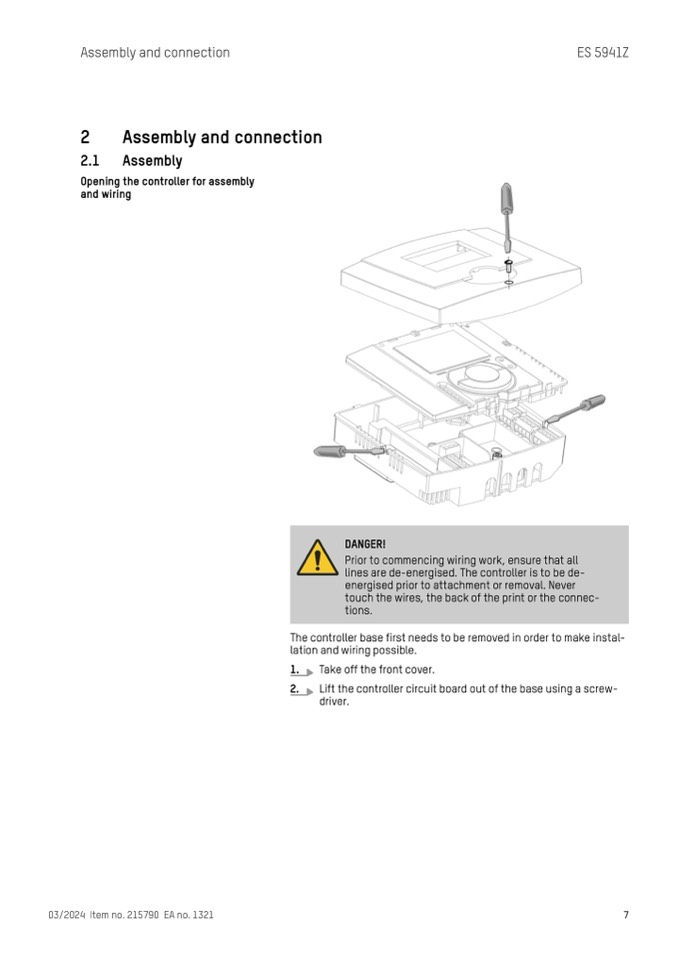

Opening the controller for assembly

and wiring

DANGER!

Prior to commencing wiring work, ensure that all

lines are de-energised. The controller is to be de-

energised prior to attachment or removal. Never

touch the wires, the back of the print or the connec-

tions.

The controller base first needs to be removed in order to make instal-

lation and wiring possible.

1.

2.

Take off the front cover.

Lift the controller circuit board out of the base using a screw-

driver.

03/2024 Item no. 215790 EA no. 1321

7
