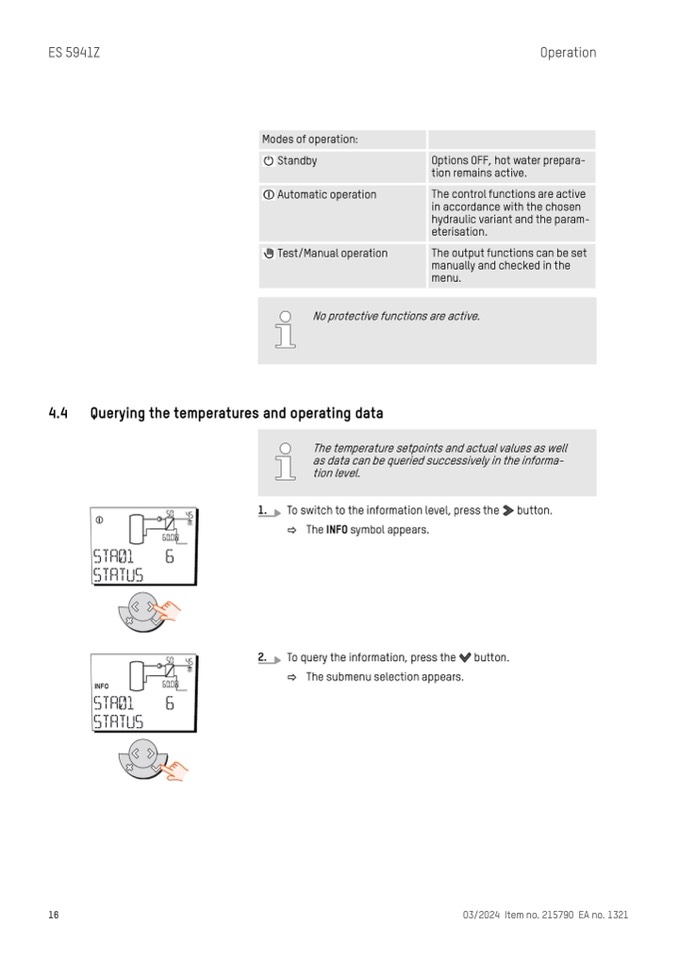

ES 5941Z

Operation

Modes of operation:

Standby

Options OFF, hot water prepara-

tion remains active.

Automatic operation

The control functions are active

in accordance with the chosen

hydraulic variant and the param-

eterisation.

Test/Manual operation

The output functions can be set

manually and checked in the

menu.

4.4

Querying the temperatures and operating data

1.

2.

To switch to the information level, press the

ð The INFO symbol appears.

To query the information, press the button.

ð The submenu selection appears.

button.

No protective functions are active.

The temperature setpoints and actual values as well

as data can be queried successively in the informa-

tion level.

16

03/2024 Item no. 215790 EA no. 1321
