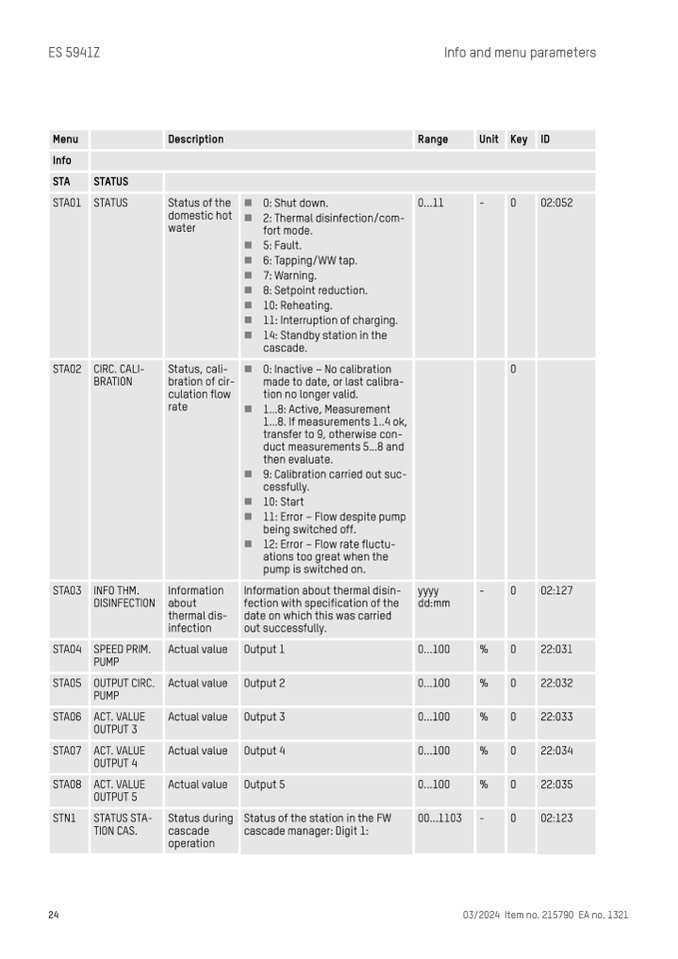

ES 5941Z

Info and menu parameters

Menu

Description

Range

Unit Key

ID

Info

STA

STATUS

STA01

STATUS

Status of the

domestic hot

water

n 0: Shut down.

n 2: Thermal disinfection/com-

fort mode.

n 5: Fault.

n 6: Tapping/WW tap.

n 7: Warning.

n 8: Setpoint reduction.

n 10: Reheating.

n 11: Interruption of charging.

n 14: Standby station in the

cascade.

0...11

-

0

02:052

STA02

CIRC. CALI-

BRATION

Status, cali-

bration of cir-

culation flow

rate

n 0: Inactive – No calibration

made to date, or last calibra-

tion no longer valid.

n 1...8: Active, Measurement

1...8. If measurements 1..4 ok,

transfer to 9, otherwise con-

duct measurements 5...8 and

then evaluate.

n 9: Calibration carried out suc-

cessfully.

n 10: Start

n 11: Error – Flow despite pump

being switched off.

n 12: Error – Flow rate fluctu-

ations too great when the

pump is switched on.

0

STA03

INFO THM.

DISINFECTION

Information

about

thermal dis-

infection

Information about thermal disin-

fection with specification of the

date on which this was carried

out successfully.

yyyy

dd:mm

-

0

02:127

STA04

SPEED PRIM.

PUMP

Actual value

Output 1

0...100

%

0

22:031

STA05

OUTPUT CIRC.

PUMP

Actual value

Output 2

0...100

%

0

22:032

STA06

ACT. VALUE

OUTPUT 3

Actual value

Output 3

0...100

%

0

22:033

STA07

ACT. VALUE

OUTPUT 4

Actual value

Output 4

0...100

%

0

22:034

STA08

ACT. VALUE

OUTPUT 5

Actual value

Output 5

0...100

%

0

22:035

STN1

STATUS STA-

TION CAS.

Status during

cascade

operation

Status of the station in the FW

cascade manager: Digit 1:

00...1103

-

0

02:123

24

03/2024 Item no. 215790 EA no. 1321
