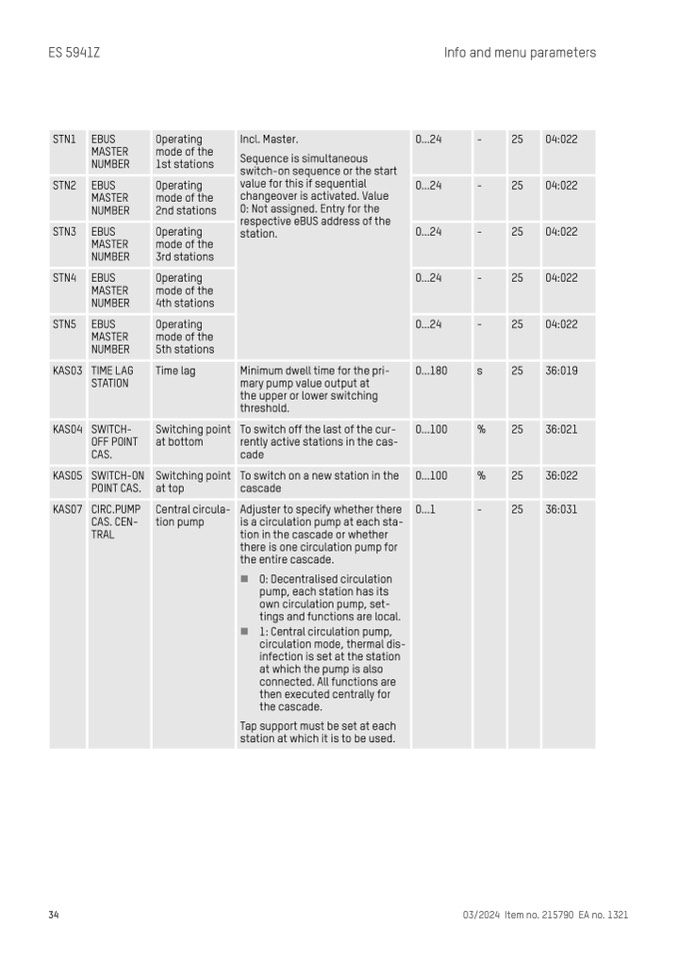

ES 5941Z

Info and menu parameters

STN1

EBUS

MASTER

NUMBER

Operating

mode of the

1st stations

Incl. Master.

Sequence is simultaneous

switch-on sequence or the start

value for this if sequential

changeover is activated. Value

0: Not assigned. Entry for the

respective eBUS address of the

station.

0...24

-

25

04:022

STN2

EBUS

MASTER

NUMBER

Operating

mode of the

2nd stations

0...24

-

25

04:022

STN3

EBUS

MASTER

NUMBER

Operating

mode of the

3rd stations

0...24

-

25

04:022

STN4

EBUS

MASTER

NUMBER

Operating

mode of the

4th stations

0...24

-

25

04:022

STN5

EBUS

MASTER

NUMBER

Operating

mode of the

5th stations

0...24

-

25

04:022

KAS03

TIME LAG

STATION

Time lag

Minimum dwell time for the pri-

mary pump value output at

the upper or lower switching

threshold.

0...180

s

25

36:019

KAS04

SWITCH-

OFF POINT

CAS.

Switching point

at bottom

To switch off the last of the cur-

rently active stations in the cas-

cade

0...100

%

25

36:021

KAS05

SWITCH-ON

POINT CAS.

Switching point

at top

To switch on a new station in the

cascade

0...100

%

25

36:022

KAS07

CIRC.PUMP

CAS. CEN-

TRAL

Central circula-

tion pump

Adjuster to specify whether there

is a circulation pump at each sta-

tion in the cascade or whether

there is one circulation pump for

the entire cascade.

n 0: Decentralised circulation

pump, each station has its

own circulation pump, set-

tings and functions are local.

n 1: Central circulation pump,

circulation mode, thermal dis-

infection is set at the station

at which the pump is also

connected. All functions are

then executed centrally for

the cascade.

Tap support must be set at each

station at which it is to be used.

0...1

-

25

36:031

34

03/2024 Item no. 215790 EA no. 1321
