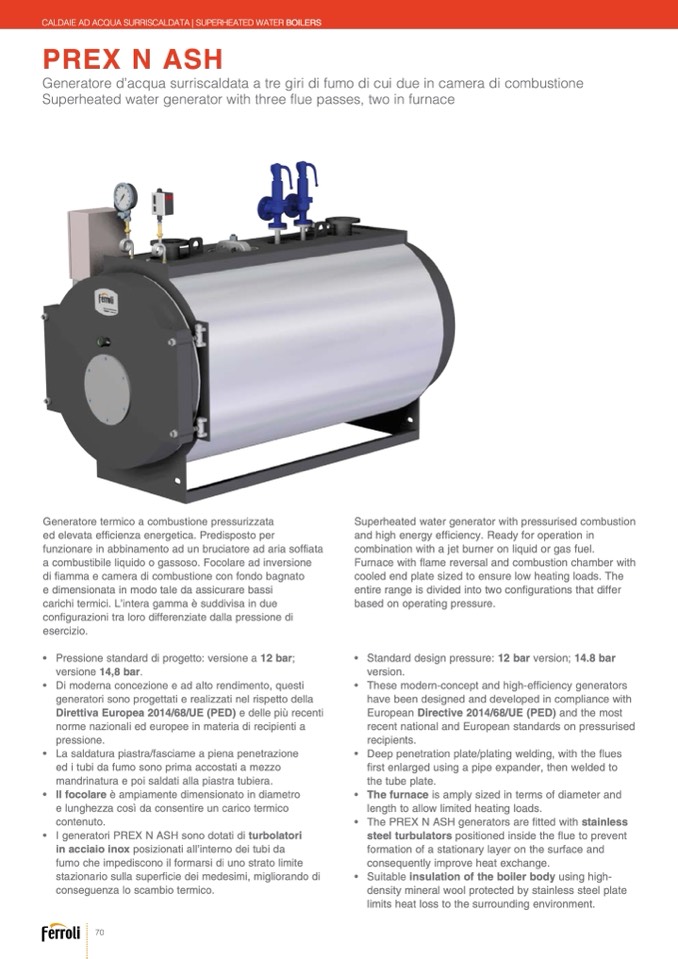

CALDAIE AD ACQUA SURRISCALDATA | SUPERHEATED WATER BOILERS

PREX N ASH

Generatore d’acqua surriscaldata a tre giri di fumo di cui due in camera di combustione

Superheated water generator with three flue passes, two in furnace

Generatore termico a combustione pressurizzata

ed elevata efficienza energetica. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria soffiata

a combustibile liquido o gassoso. Focolare ad inversione

di fiamma e camera di combustione con fondo bagnato

e dimensionata in modo tale da assicurare bassi

carichi termici. L’intera gamma è suddivisa in due

configurazioni tra loro differenziate dalla pressione di

esercizio.

• Pressione standard di progetto: versione a 12 bar;

versione 14,8 bar.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto della

Direttiva Europea 2014/68/UE (PED) e delle più recenti

norme nazionali ed europee in materia di recipienti a

pressione.

• La saldatura piastra/fasciame a piena penetrazione

ed i tubi da fumo sono prima accostati a mezzo

mandrinatura e poi saldati alla piastra tubiera.

• Il focolare è ampiamente dimensionato in diametro

e lunghezza così da consentire un carico termico

contenuto.

• I generatori PREX N ASH sono dotati di turbolatori

in acciaio inox posizionati all’interno dei tubi da

fumo che impediscono il formarsi di uno strato limite

stazionario sulla superficie dei medesimi, migliorando di

conseguenza lo scambio termico.

Superheated water generator with pressurised combustion

and high energy efficiency. Ready for operation in

combination with a jet burner on liquid or gas fuel.

Furnace with flame reversal and combustion chamber with

cooled end plate sized to ensure low heating loads. The

entire range is divided into two configurations that differ

based on operating pressure.

• Standard design pressure: 12 bar version; 14.8 bar

version.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance with

European Directive 2014/68/UE (PED) and the most

recent national and European standards on pressurised

recipients.

• Deep penetration plate/plating welding, with the flues

first enlarged using a pipe expander, then welded to

the tube plate.

• The furnace is amply sized in terms of diameter and

length to allow limited heating loads.

• The PREX N ASH generators are fitted with stainless

steel turbulators positioned inside the flue to prevent

formation of a stationary layer on the surface and

consequently improve heat exchange.

• Suitable insulation of the boiler body using high-

density mineral wool protected by stainless steel plate

limits heat loss to the surrounding environment.
