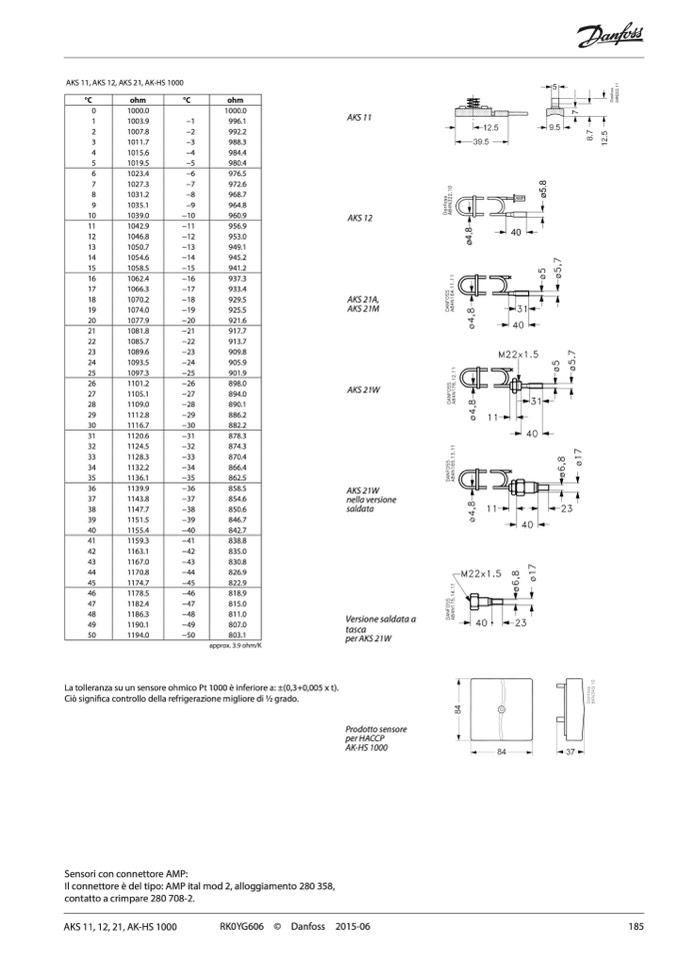

AKS 11, AKS 12, AKS 21, AK-HS 1000
°C
ohm
°C
0
1000.0
1
1003.9
−1
2
1007.8
−2
3
1011.7
−3
4
1015.6
−4
5
1019.5
−5
6
1023.4
−6
7
1027.3
−7
8
1031.2
−8
9
1035.1
−9
10
1039.0
−10
11
1042.9
−11
12
1046.8
−12
13
1050.7
−13
14
1054.6
−14
15
1058.5
−15
16
1062.4
−16
17
1066.3
−17
18
1070.2
−18
19
1074.0
−19
20
1077.9
−20
21
1081.8
−21
22
1085.7
−22
23
1089.6
−23
24
1093.5
−24
25
1097.3
−25
26
1101.2
−26
27
1105.1
−27
28
1109.0
−28
29
1112.8
−29
30
1116.7
−30
31
1120.6
−31
32
1124.5
−32
33
1128.3
−33
34
1132.2
−34
35
1136.1
−35
36
1139.9
−36
37
1143.8
−37
38
1147.7
−38
39
1151.5
−39
40
1155.4
−40
41
1159.3
−41
42
1163.1
−42
43
1167.0
−43
44
1170.8
−44
45
1174.7
−45
46
1178.5
−46
47
1182.4
−47
48
1186.3
−48
49
1190.1
−49
50
1194.0
−50
ohm
1000.0
996.1
992.2
988.3
984.4
980.4
976.5
972.6
968.7
964.8
960.9
956.9
953.0
949.1
945.2
941.2
937.3
933.4
929.5
925.5
921.6
917.7
913.7
909.8
905.9
901.9
898.0
894.0
890.1
886.2
882.2
878.3
874.3
870.4
866.4
862.5
858.5
854.6
850.6
846.7
842.7
838.8
835.0
830.8
826.9
822.9
818.9
815.0
811.0
807.0
803.1
approx. 3.9 ohm/K
AKS 11
AKS 12
AKS 21A,
AKS 21M
AKS 21W
AKS 21W
nella versione
saldata
Versione saldata a
tasca
per AKS 21W
Prodotto sensore
per HACCP
AK-HS 1000
La tolleranza su un sensore ohmico Pt 1000 è inferiore a: ±(0,3+0,005 x t).
Ciò significa controllo della refrigerazione migliore di 1⁄2 grado.
Sensori con connettore AMP:
Il connettore è del tipo: AMP ital mod 2, alloggiamento 280 358,
contatto a crimpare 280 708-2.
AKS 11, 12, 21, AK-HS 1000
RK0YG606 © Danfoss 2015-06
