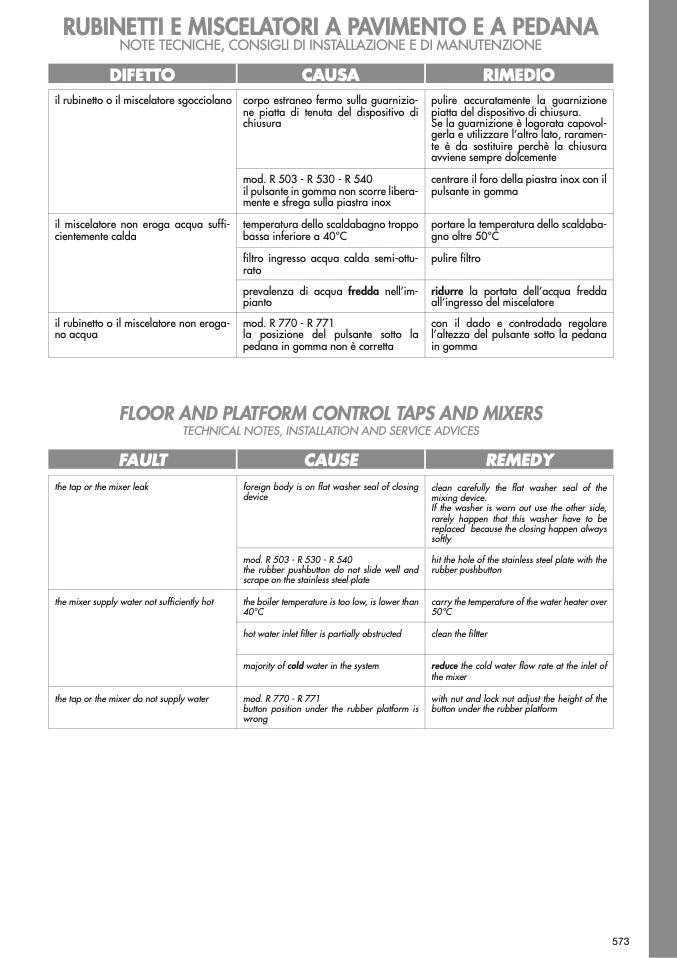

RUBINETTI E MISCELATORI A PAVIMENTO E A PEDANA

NOTE TECNICHE, CONSIGLI DI INSTALLAZIONE E DI MANUTENZIONE

DIFETTO

CAUSA

RIMEDIO

il rubinetto o il miscelatore sgocciolano

corpo estraneo fermo sulla guarnizio-

ne piatta di tenuta del dispositivo di

chiusura

pulire accuratamente la guarnizione

piatta del dispositivo di chiusura.

Se la guarnizione è logorata capovol-

gerla e utilizzare l’altro lato, raramen-

te è da sostituire perchè la chiusura

avviene sempre dolcemente

mod. R 503 - R 530 - R 540

il pulsante in gomma non scorre libera-

mente e sfrega sulla piastra inox

centrare il foro della piastra inox con il

pulsante in gomma

il miscelatore non eroga acqua suffi-

cientemente calda

temperatura dello scaldabagno troppo

bassa inferiore a 40°C

portare la temperatura dello scaldaba-

gno oltre 50°C

filtro ingresso acqua calda semi-ottu-

rato

pulire filtro

prevalenza di acqua fredda nell’im-

pianto

ridurre la portata dell’acqua fredda

all’ingresso del miscelatore

il rubinetto o il miscelatore non eroga-

no acqua

mod. R 770 - R 771

la posizione del pulsante sotto la

pedana in gomma non è corretta

con il dado e controdado regolare

l’altezza del pulsante sotto la pedana

in gomma

FLOOR AND PLATFORM CONTROL TAPS AND MIXERS

TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES

FAULT

CAUSE

REMEDY

the tap or the mixer leak

foreign body is on flat washer seal of closing

device

clean carefully the flat washer seal of the

mixing device.

If the washer is worn out use the other side,

rarely happen that this washer have to be

replaced because the closing happen always

softly

mod. R 503 - R 530 - R 540

the rubber pushbutton do not slide well and

scrape on the stainless steel plate

hit the hole of the stainless steel plate with the

rubber pushbutton

the mixer supply water not sufficiently hot

the boiler temperature is too low, is lower than

40°C

carry the temperature of the water heater over

50°C

hot water inlet filter is partially obstructed

clean the filtter

majority of cold water in the system

reduce the cold water flow rate at the inlet of

the mixer

the tap or the mixer do not supply water

mod. R 770 - R 771

button position under the rubber platform is

wrong

with nut and lock nut adjust the height of the

button under the rubber platform
