HYDRA single-stage self cleaning filters
O
N
S
E
V
I
R
A
L
N
-
E
N
D
L
Y
P
R
I
A
M
E
ATLAS
green
R
I
HYDRA
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
162 | self-cleaning filters
Max working pressure:
BSP versions ____________8 bar (116 psi)
NPT versions ___________8,6 bar (125 psi)
Min working pressure _______1,8 bar (26 psi)
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002

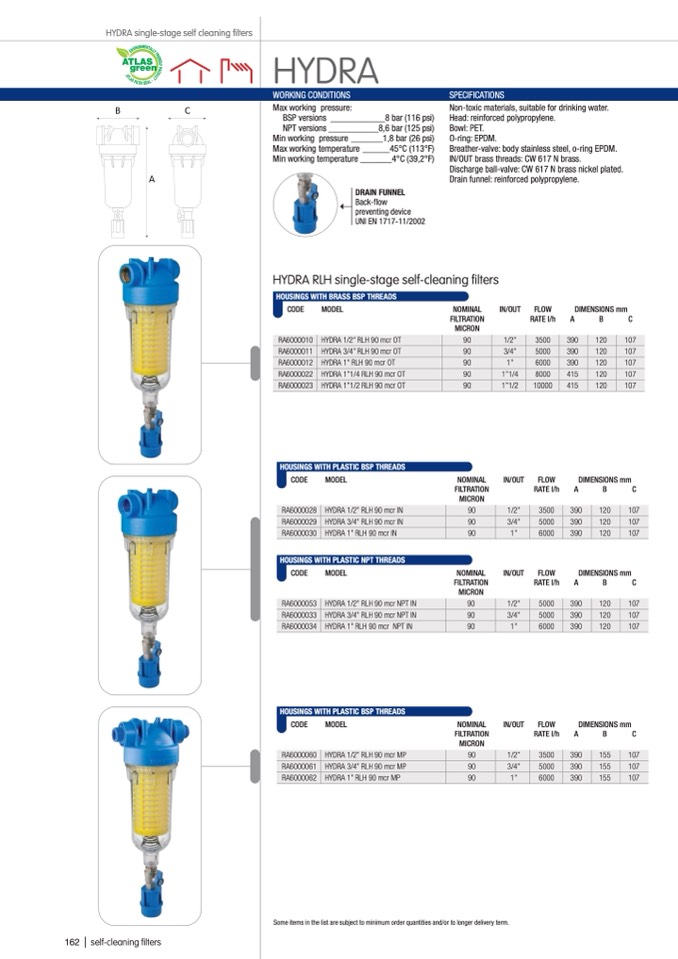

HYDRA RLH single-stage self-cleaning filters
➝
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
NOMINAL
FILTRATION
MICRON
IN/OUT
FLOW
RATE l/h
DIMENSIONS mm
A
B
C
RA6000010
HYDRA 1/2” RLH 90 mcr OT
90
1/2”
3500
390
120
107
RA6000011
HYDRA 3/4” RLH 90 mcr OT
90
3/4”
5000
390
120
107
RA6000012
HYDRA 1” RLH 90 mcr OT
90
1”
6000
390
120
107
RA6000022
HYDRA 1”1/4 RLH 90 mcr OT
90
1”1/4
8000
415
120
107
RA6000023
HYDRA 1”1/2 RLH 90 mcr OT
90
1”1/2
10000
415
120
107
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
HOUSINGS WITH PLASTIC NPT THREADS
CODE
MODEL
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
NOMINAL
FILTRATION
MICRON
NOMINAL
FILTRATION
MICRON
NOMINAL
FILTRATION
MICRON
IN/OUT
IN/OUT
FLOW
RATE l/h
FLOW
RATE l/h
FLOW
RATE l/h
DIMENSIONS mm
A
B
C
DIMENSIONS mm
A
B
C
DIMENSIONS mm
A
B
C
RA6000028
HYDRA 1/2” RLH 90 mcr IN
90
1/2”
3500
390
120
107
RA6000029
HYDRA 3/4” RLH 90 mcr IN
90
3/4”
5000
390
120
107
RA6000030
HYDRA 1” RLH 90 mcr IN
90
1”
6000
390
120
107
RA6000053
HYDRA 1/2” RLH 90 mcr NPT IN
90
1/2”
5000
390
120
107
RA6000033
HYDRA 3/4” RLH 90 mcr NPT IN
90
3/4”
5000
390
120
107
RA6000034
HYDRA 1” RLH 90 mcr NPT IN
90
1”
6000
390
120
107
RA6000060
HYDRA 1/2” RLH 90 mcr MP
90
1/2”
3500
390
155
107
RA6000061
HYDRA 3/4” RLH 90 mcr MP
90
3/4”
5000
390
155
107
RA6000062
HYDRA 1” RLH 90 mcr MP
90
1”
6000
390
155
107
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
Non-toxic materials, suitable for drinking water.
Head: reinforced polypropylene.
Bowl: PET.
O-ring: EPDM.
Breather-valve: body stainless steel, o-ring EPDM.
IN/OUT brass threads: CW 617 N brass.
Discharge ball-valve: CW 617 N brass nickel plated.
Drain funnel: reinforced polypropylene.
IN/OUT
