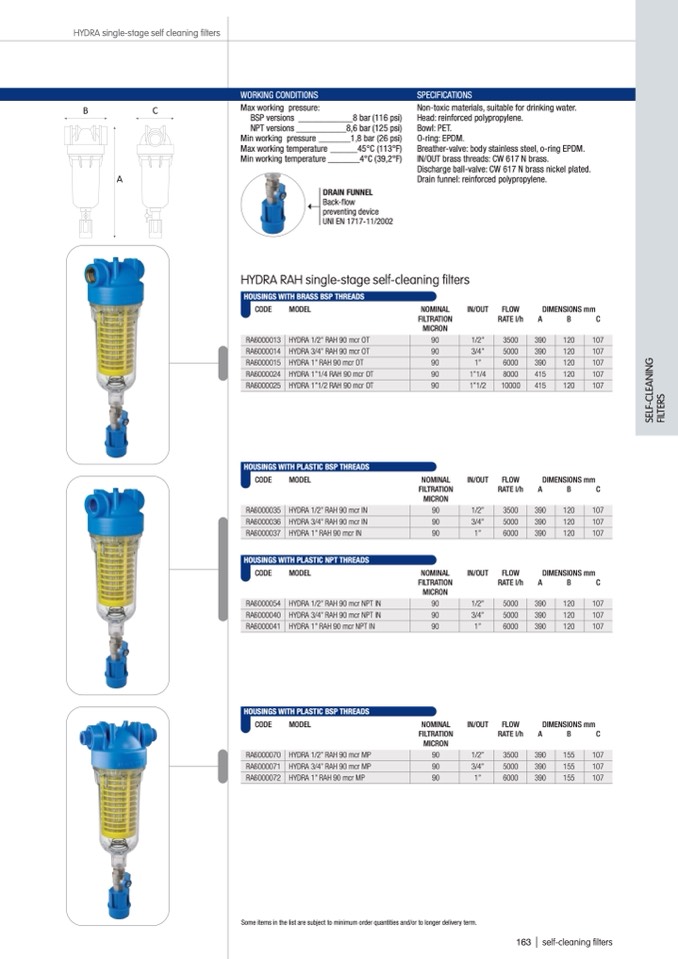

HYDRA single-stage self cleaning filters
S
E
L
F
-
C
L
E
A
N
I
N
G
F
I
L
T
E
R
S
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
Max working pressure:
BSP versions ____________8 bar (116 psi)
NPT versions ___________8,6 bar (125 psi)
Min working pressure _______1,8 bar (26 psi)
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002
HYDRA RAH single-stage self-cleaning filters
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
NOMINAL
IN/OUT
FILTRATION
MICRON
FLOW
RATE l/h
DIMENSIONS mm
A
B
C
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
HOUSINGS WITH PLASTIC NPT THREADS
CODE
MODEL
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
NOMINAL
IN/OUT
FILTRATION
MICRON
NOMINAL
IN/OUT
FILTRATION
MICRON
NOMINAL
IN/OUT
FILTRATION
MICRON
FLOW
RATE l/h
FLOW
RATE l/h
FLOW
RATE l/h
DIMENSIONS mm
A
B
C
DIMENSIONS mm
A
B
C
DIMENSIONS mm
A
B
C
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
Non-toxic materials, suitable for drinking water.
Head: reinforced polypropylene.
Bowl: PET.
O-ring: EPDM.
Breather-valve: body stainless steel, o-ring EPDM.
IN/OUT brass threads: CW 617 N brass.
Discharge ball-valve: CW 617 N brass nickel plated.
Drain funnel: reinforced polypropylene.
163 | self-cleaning filters
➝
RA6000013
HYDRA 1/2” RAH 90 mcr OT
90
1/2”
3500
390
120
107
RA6000014
HYDRA 3/4” RAH 90 mcr OT
90
3/4”
5000
390
120
107
RA6000015
HYDRA 1” RAH 90 mcr OT
90
1”
6000
390
120
107
RA6000024
HYDRA 1”1/4 RAH 90 mcr OT
90
1”1/4
8000
415
120
107
RA6000025
HYDRA 1”1/2 RAH 90 mcr OT
90
1”1/2
10000
415
120
107
RA6000035
HYDRA 1/2” RAH 90 mcr IN
90
1/2”
3500
390
120
107
RA6000036
HYDRA 3/4” RAH 90 mcr IN
90
3/4”
5000
390
120
107
RA6000037
HYDRA 1” RAH 90 mcr IN
90
1”
6000
390
120
107
RA6000054
HYDRA 1/2” RAH 90 mcr NPT IN
90
1/2”
5000
390
120
107
RA6000040
HYDRA 3/4” RAH 90 mcr NPT IN
90
3/4”
5000
390
120
107
RA6000041
HYDRA 1” RAH 90 mcr NPT IN
90
1”
6000
390
120
107
RA6000070
HYDRA 1/2” RAH 90 mcr MP
90
1/2”
3500
390
155
107
RA6000071
HYDRA 3/4” RAH 90 mcr MP
90
3/4”
5000
390
155
107
RA6000072
HYDRA 1” RAH 90 mcr MP
90
1”
6000
390
155
107
