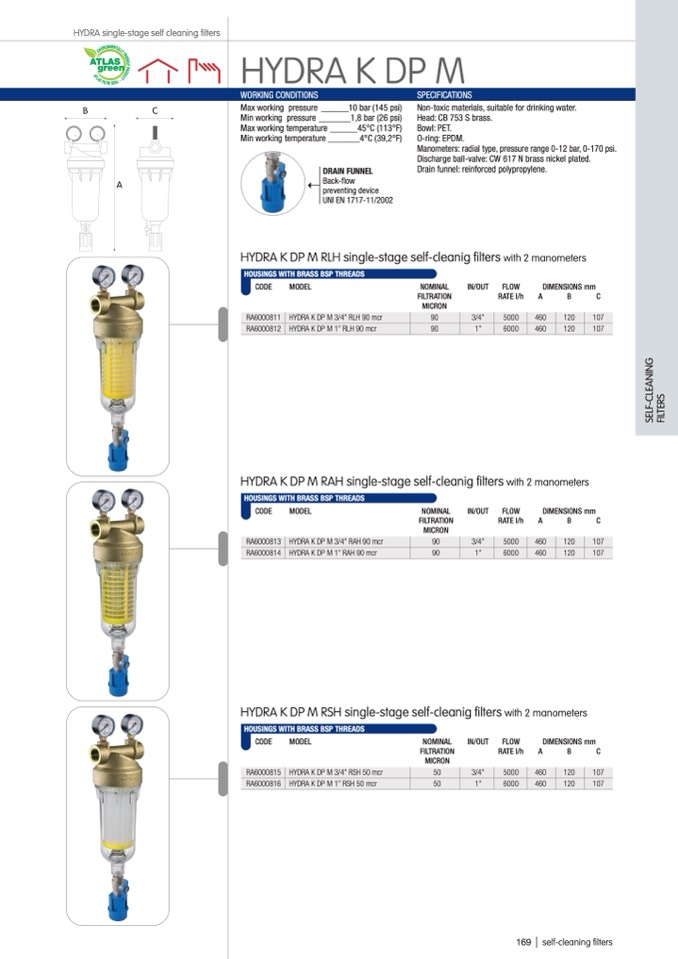

HYDRA single-stage self cleaning filters
S
E
L
F
-
C
L
E
A
N
I
N
G
F
I
L
T
E
R
S
O
N
S
E
V
I
R
A
L
N
-
E
N
D
L
Y
R
I
A
F
T
M
ATLAS
green
R
I
HYDRA K DP M
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
Max working pressure ______10 bar (145 psi)
Min working pressure _______1,8 bar (26 psi)
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002
Non-toxic materials, suitable for drinking water.
Head: CB 753 S brass.
Bowl: PET.
O-ring: EPDM.
Manometers: radial type, pressure range 0-12 bar, 0-170 psi.
Discharge ball-valve: CW 617 N brass nickel plated.
Drain funnel: reinforced polypropylene.
HYDRA K DP M RLH single-stage self-cleanig filters with 2 manometers
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
NOMINAL
IN/OUT
FLOW
DIMENSIONS mm
FILTRATION
RATE l/h
A
B
C
MICRON
HYDRA K DP M RAH single-stage self-cleanig filters with 2 manometers
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
NOMINAL
IN/OUT
FLOW
DIMENSIONS mm
FILTRATION
RATE l/h
A
B
C
MICRON
HYDRA K DP M RSH single-stage self-cleanig filters with 2 manometers
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
NOMINAL
IN/OUT
FILTRATION
MICRON
FLOW
DIMENSIONS mm
RATE l/h
A
B
C
169 | self-cleaning filters
➝
RA6000811 HYDRA K DP M 3/4” RLH 90 mcr
90
3/4”
5000
460
120
107
RA6000812 HYDRA K DP M 1” RLH 90 mcr
90
1”
6000
460
120
107
RA6000813 HYDRA K DP M 3/4” RAH 90 mcr
90
3/4”
5000
460
120
107
RA6000814 HYDRA K DP M 1” RAH 90 mcr
90
1”
6000
460
120
107
RA6000815 HYDRA K DP M 3/4” RSH 50 mcr
50
3/4”
5000
460
120
107
RA6000816 HYDRA K DP M 1” RSH 50 mcr
50
1”
6000
460
120
107
