HYDRA DUO and TRIO

S

E

L

F

-

C

L

E

A

N

I

N

G

F

I

L

T

E

R

S

O

N

S

E

V

I

R

A

L

N

-

E

N

D

L

Y

R

I

A

F

T

M

ATLAS

green

R

I

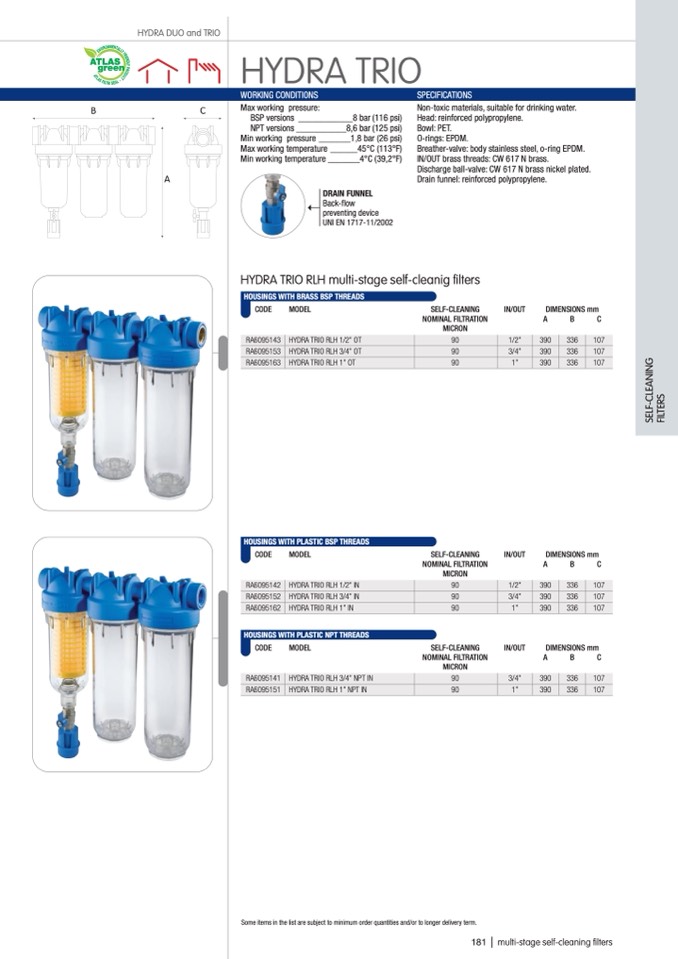

HYDRA TRIO

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

Max working pressure:

BSP versions ____________8 bar (116 psi)

NPT versions ___________8,6 bar (125 psi)

Min working pressure _______1,8 bar (26 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

HYDRA TRIO RLH multi-stage self-cleanig filters

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

SELF-CLEANING

NOMINAL FILTRATION

MICRON

IN/OUT

DIMENSIONS mm

A

B

C

HOUSINGS WITH PLASTIC BSP THREADS

CODE

MODEL

HOUSINGS WITH PLASTIC NPT THREADS

CODE

MODEL

SELF-CLEANING

NOMINAL FILTRATION

MICRON

SELF-CLEANING

NOMINAL FILTRATION

MICRON

IN/OUT

IN/OUT

DIMENSIONS mm

A

B

C

DIMENSIONS mm

A

B

C

Some items in the list are subject to minimum order quantities and/or to longer delivery term.

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: PET.

O-rings: EPDM.

Breather-valve: body stainless steel, o-ring EPDM.

IN/OUT brass threads: CW 617 N brass.

Discharge ball-valve: CW 617 N brass nickel plated.

Drain funnel: reinforced polypropylene.

181 | multi-stage self-cleaning filters

➝

RA6095143

HYDRA TRIO RLH 1/2” OT

90

1/2”

390

336

107

RA6095153

HYDRA TRIO RLH 3/4” OT

90

3/4”

390

336

107

RA6095163

HYDRA TRIO RLH 1” OT

90

1”

390

336

107

RA6095142

HYDRA TRIO RLH 1/2” IN

90

1/2”

390

336

107

RA6095152

HYDRA TRIO RLH 3/4” IN

90

3/4”

390

336

107

RA6095162

HYDRA TRIO RLH 1” IN

90

1”

390

336

107

RA6095141 HYDRA TRIO RLH 3/4” NPT IN

90

3/4”

390

336

107

RA6095151 HYDRA TRIO RLH 1” NPT IN

90

1”

390

336

107
