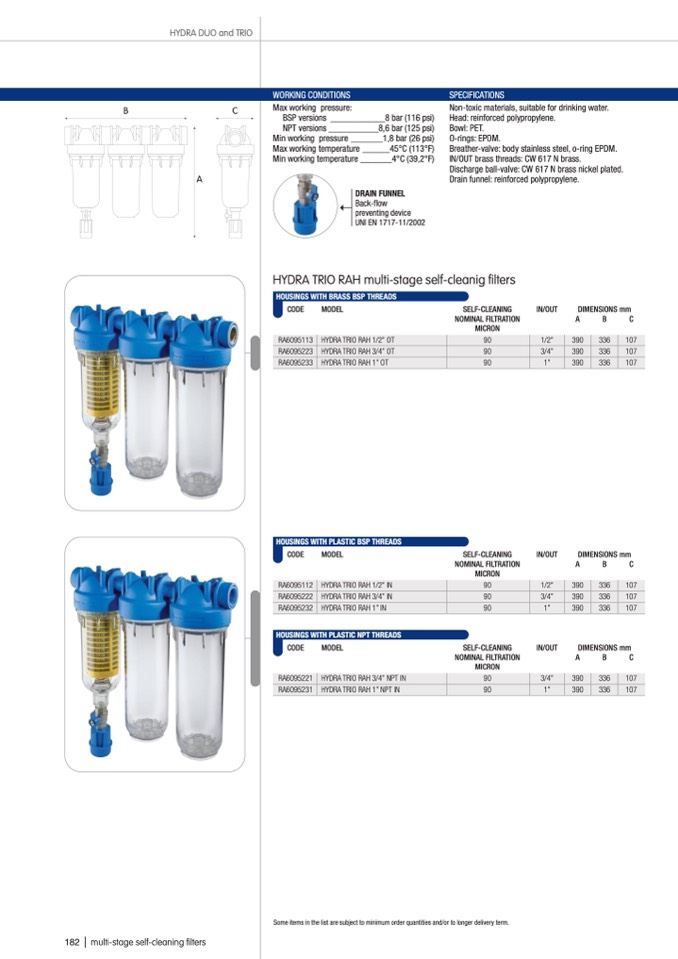

HYDRA DUO and TRIO
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
182 | multi-stage self-cleaning filters
Max working pressure:
BSP versions ____________8 bar (116 psi)
NPT versions ___________8,6 bar (125 psi)
Min working pressure _______1,8 bar (26 psi)
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002
HYDRA TRIO RAH multi-stage self-cleanig filters
➝
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
SELF-CLEANING
NOMINAL FILTRATION
MICRON
IN/OUT
DIMENSIONS mm
A
B
C
RA6095113
HYDRA TRIO RAH 1/2” OT
90
1/2”
390
336
107
RA6095223
HYDRA TRIO RAH 3/4” OT
90
3/4”
390
336
107
RA6095233
HYDRA TRIO RAH 1” OT
90
1”
390
336
107
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
HOUSINGS WITH PLASTIC NPT THREADS
CODE
MODEL
SELF-CLEANING
NOMINAL FILTRATION
MICRON
SELF-CLEANING
NOMINAL FILTRATION
MICRON
IN/OUT
IN/OUT
DIMENSIONS mm
A
B
C
DIMENSIONS mm
A
B
C
RA6095112
HYDRA TRIO RAH 1/2” IN
90
1/2”
390
336
107
RA6095222
HYDRA TRIO RAH 3/4” IN
90
3/4”
390
336
107
RA6095232
HYDRA TRIO RAH 1” IN
90
1”
390
336
107
RA6095221 HYDRA TRIO RAH 3/4” NPT IN
90
3/4”
390
336
107
RA6095231 HYDRA TRIO RAH 1” NPT IN
90
1”
390
336
107
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
Non-toxic materials, suitable for drinking water.
Head: reinforced polypropylene.
Bowl: PET.
O-rings: EPDM.
Breather-valve: body stainless steel, o-ring EPDM.
IN/OUT brass threads: CW 617 N brass.
Discharge ball-valve: CW 617 N brass nickel plated.
Drain funnel: reinforced polypropylene.
