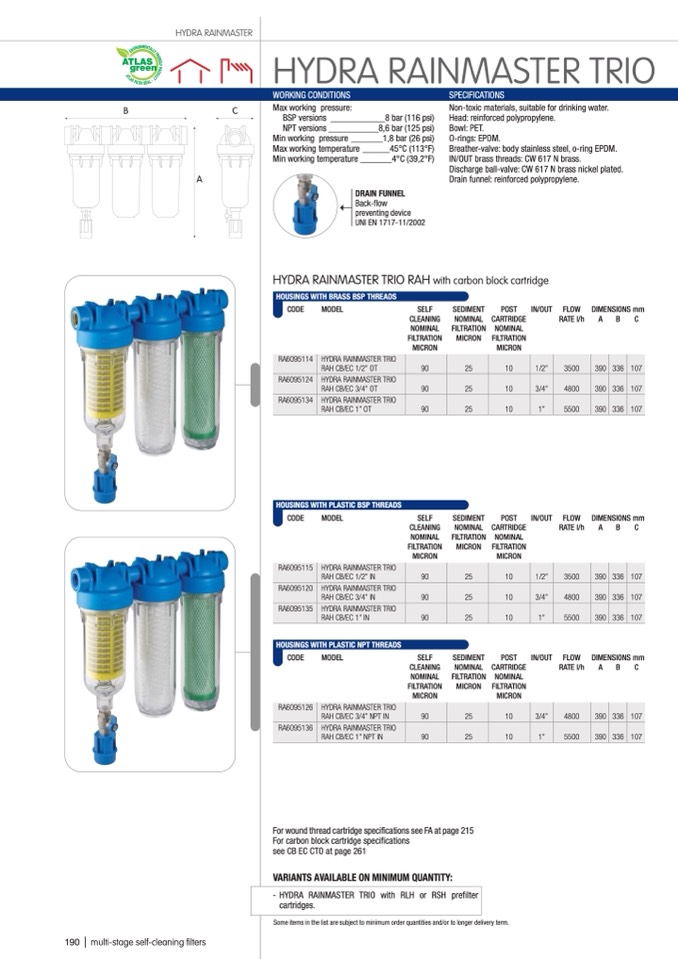

HYDRA RAINMASTER TRIO

WORKING CONDITIONS

SPECIFICATIONS

Max working pressure:

BSP versions ____________8 bar (116 psi)

NPT versions ___________8,6 bar (125 psi)

Min working pressure _______1,8 bar (26 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

HYDRA RAINMASTER TRIO RAH with carbon block cartridge

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

SELF

SEDIMENT

POST

CLEANING

NOMINAL CARTRIDGE

NOMINAL

FILTRATION NOMINAL

IN/OUT

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

HOUSINGS WITH PLASTIC BSP THREADS

CODE

MODEL

HOUSINGS WITH PLASTIC NPT THREADS

SELF

SEDIMENT

CLEANING

NOMINAL

NOMINAL

FILTRATION NOMINAL

IN/OUT

IN/OUT

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

CODE

MODEL

SELF

CLEANING

DIMENSIONS mm

FILTRATION

MICRON

MICRON

For wound thread cartridge specifications see FA at page 215

For carbon block cartridge specifications

see CB EC CTO at page 261

VARIANTS AVAILABLE ON MINIMUM QUANTITY:

FILTRATION

MICRON

Some items in the list are subject to minimum order quantities and/or to longer delivery term.

FILTRATION

MICRON

MICRON

FILTRATION

MICRON

FILTRATION

MICRON

MICRON

FILTRATION

MICRON

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: PET.

O-rings: EPDM.

Breather-valve: body stainless steel, o-ring EPDM.

IN/OUT brass threads: CW 617 N brass.

Discharge ball-valve: CW 617 N brass nickel plated.

Drain funnel: reinforced polypropylene.

SEDIMENT

NOMINAL

NOMINAL

FILTRATION NOMINAL

POST

CARTRIDGE

POST

CARTRIDGE

FLOW

RATE l/h

A

B

C

➝

RA6095114

HYDRA RAINMASTER TRIO

RAH CB/EC 1/2” OT

90

25

10

1/2”

3500

390

336

107

RA6095124

HYDRA RAINMASTER TRIO

RAH CB/EC 3/4” OT

90

25

10

3/4”

4800

390

336

107

RA6095134

HYDRA RAINMASTER TRIO

RAH CB/EC 1” OT

90

25

10

1”

5500

390

336

107

RA6095115

HYDRA RAINMASTER TRIO

RAH CB/EC 1/2” IN

90

25

10

1/2”

3500

390

336

107

RA6095120

HYDRA RAINMASTER TRIO

RAH CB/EC 3/4” IN

90

25

10

3/4”

4800

390

336

107

RA6095135

HYDRA RAINMASTER TRIO

RAH CB/EC 1” IN

90

25

10

1”

5500

390

336

107

RA6095126

HYDRA RAINMASTER TRIO

RAH CB/EC 3/4” NPT IN

90

25

10

3/4”

4800

390

336

107

RA6095136

HYDRA RAINMASTER TRIO

RAH CB/EC 1” NPT IN

90

25

10

1”

5500

390

336

107

190 | multi-stage self-cleaning filters

- HYDRA RAINMASTER TRIO with RLH or RSH prefilter

cartridges.
