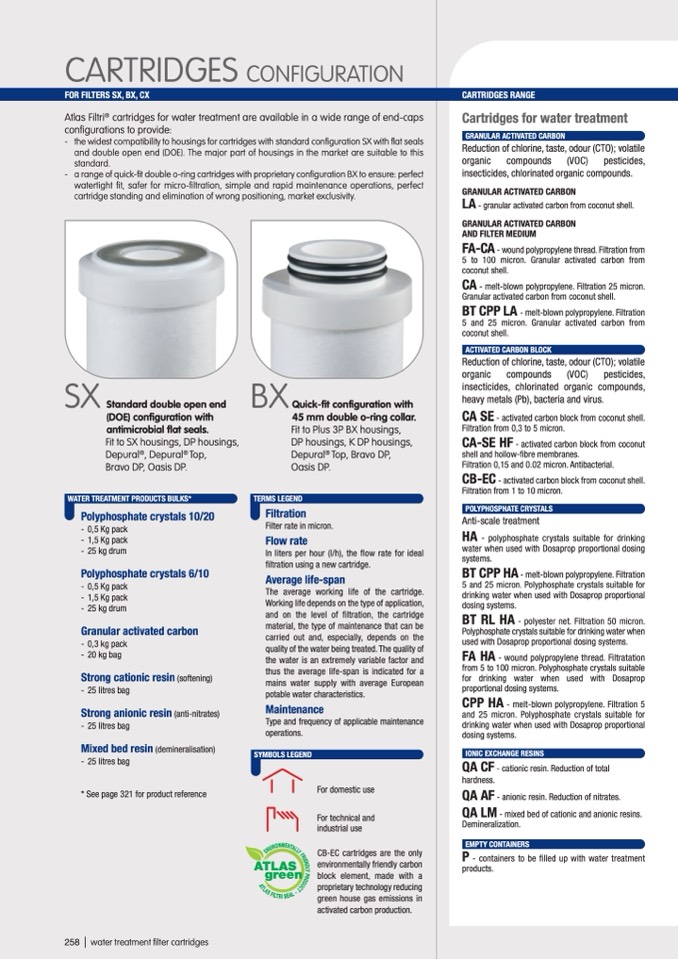

CARTRIDGES

CONFIGURATION

FOR FILTERS SX, BX, CX

CARTRIDGES RANGE

O

N

S

R

L

E

N

-

D

L

Y

P

R

O

R

I

A

D

U

Y

F

T

L

C

T

L

L

A

S

T

A

F

I

N

L

T

Atlas Filtri

®

cartridges for water treatment are available in a wide range of end-caps

configurations to provide:

- the widest compatibility to housings for cartridges with standard configuration SX with flat seals

and double open end (DOE). The major part of housings in the market are suitable to this

standard.

- a range of quick-fit double o-ring cartridges with proprietary configuration BX to ensure: perfect

watertight fit, safer for micro-filtration, simple and rapid maintenance operations, perfect

cartridge standing and elimination of wrong positioning, market exclusivity.

SX

Standard double open end

(DOE) configuration with

antimicrobial flat seals.

Fit to SX housings, DP housings,

Depural

®

, Depural

®

Top,

Bravo DP, Oasis DP.

WATER TREATMENT PRODUCTS BULKS*

Polyphosphate crystals 10/20

- 0,5 Kg pack

- 1,5 Kg pack

- 25 kg drum

Polyphosphate crystals 6/10

- 0,5 Kg pack

- 1,5 Kg pack

- 25 kg drum

Granular activated carbon

- 0,3 kg pack

- 20 kg bag

Strong cationic resin (softening)

- 25 litres bag

Strong anionic resin (anti-nitrates)

- 25 litres bag

Mixed bed resin (demineralisation)

- 25 litres bag

* See page 321 for product reference

BX

Quick-fit configuration with

45 mm double o-ring collar.

Fit to Plus 3P BX housings,

DP housings, K DP housings,

Depural

®

Top, Bravo DP,

Oasis DP.

TERMS LEGEND

Filtration

Filter rate in micron.

Flow rate

In liters per hour (l/h), the flow rate for ideal

filtration using a new cartridge.

Average life-span

The average working life of the cartridge.

Working life depends on the type of application,

and on the level of filtration, the cartridge

material, the type of maintenance that can be

carried out and, especially, depends on the

quality of the water being treated. The quality of

the water is an extremely variable factor and

thus the average life-span is indicated for a

mains water supply with average European

potable water characteristics.

Maintenance

Type and frequency of applicable maintenance

operations.

258 | water treatment filter cartridges

SYMBOLS LEGEND

M

E

ATLAS

green

R

I

For domestic use

For technical and

industrial use

CB-EC cartridges are the only

environmentally friendly carbon

block element, made with a

proprietary technology reducing

green house gas emissions in

activated carbon production.

Cartridges for water treatment

GRANULAR ACTIVATED CARBON

Reduction of chlorine, taste, odour (CTO); volatile

organic

compounds

(VOC)

pesticides,

insecticides, chlorinated organic compounds.

GRANULAR ACTIVATED CARBON

LA

- granular activated carbon from coconut shell.

GRANULAR ACTIVATED CARBON

AND FILTER MEDIUM

FA-CA

- wound polypropylene thread. Filtration from

5 to 100 micron. Granular activated carbon from

coconut shell.

CA

- melt-blown polypropylene. Filtration 25 micron.

Granular activated carbon from coconut shell.

BT CPP LA

- melt-blown polypropylene. Filtration

5 and 25 micron. Granular activated carbon from

coconut shell.

ACTIVATED CARBON BLOCK

Reduction of chlorine, taste, odour (CTO); volatile

organic

compounds

(VOC)

pesticides,

insecticides, chlorinated organic compounds,

heavy metals (Pb), bacteria and virus.

CA SE

- activated carbon block from coconut shell.

Filtration from 0,3 to 5 micron.

CA-SE HF

- activated carbon block from coconut

shell and hollow-fibre membranes.

Filtration 0,15 and 0.02 micron. Antibacterial.

CB-EC

- activated carbon block from coconut shell.

Filtration from 1 to 10 micron.

POLYPHOSPHATE CRYSTALS

Anti-scale treatment

HA

- polyphosphate crystals suitable for drinking

water when used with Dosaprop proportional dosing

systems.

BT CPP HA

- melt-blown polypropylene. Filtration

5 and 25 micron. Polyphosphate crystals suitable for

drinking water when used with Dosaprop proportional

dosing systems.

BT RL HA

- polyester net. Filtration 50 micron.

Polyphosphate crystals suitable for drinking water when

used with Dosaprop proportional dosing systems.

FA HA

- wound polypropylene thread. Filtratation

from 5 to 100 micron. Polyphosphate crystals suitable

for drinking water when used with Dosaprop

proportional dosing systems.

CPP HA

- melt-blown polypropylene. Filtration 5

and 25 micron. Polyphosphate crystals suitable for

drinking water when used with Dosaprop proportional

dosing systems.

IONIC EXCHANGE RESINS

QA CF

- cationic resin. Reduction of total

hardness.

QA AF

- anionic resin. Reduction of nitrates.

QA LM

- mixed bed of cationic and anionic resins.

Demineralization.

EMPTY CONTAINERS

P

- containers to be filled up with water treatment

products.
