A
OD 1,77” x ID 0,71”
LA MIGNON SX
OD 2,40” x ID 1,10”
LA 5 SX
LA 7 SX
LA 10 SX
LA 20 SX
HEIGHT
5” M
5”
7”
10”
20”
FLOW RATE l/h
A
B
C
150
125
50
21
200
128
70
28
300
176
70
28
500
252
70
28
750
510
70
28
LA granular activated carbon (GAC)
Reduction of: chlorine, taste, odour (CTO); volatile
organic compounds (VOC).
Average life-span: 3 months.
Maintenance: none.
Remark - Use a pre-filter to protect the cartridge.
C
B
C
A
B
LA cartridges are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
MODELS:
- LA MIGNON series 5”M OD 1.77” ID 0.71, SX
configuration.
- LA series from 5” to 20” OD 2.40” ID 1.10”,
SX, BX configurations.
VARIANTS AVAILABLE
ON MINIMUM QUANTITY:
- LA-Ag models with silver impregnated coconut
GAC for bacteriostatic effect.
CERTIFICATIONS
LA cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification EAC/
Ghostreghistrazia (Russia) and WaterMark (Australia).
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Container, end cap and grid: polystyrene.
Flat seal SX: SEBS with antimicrobial technology.
O-rings BX: EPDM.
Containing sponge: polyurethane.
Treatment material: granular activated carbon
from coconut shell.

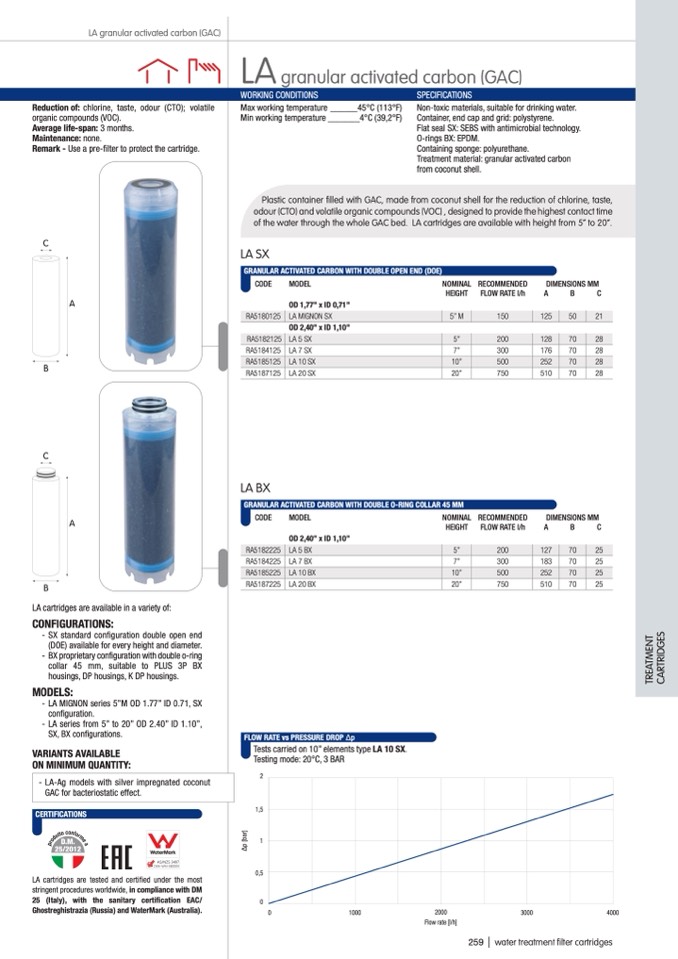

LA
granular activated carbon (GAC)
Plastic container filled with GAC, made from coconut shell for the reduction of chlorine, taste,
odour (CTO) and volatile organic compounds (VOC) , designed to provide the highest contact time
of the water through the whole GAC bed. LA cartridges are available with height from 5” to 20”.
LA SX
GRANULAR ACTIVATED CARBON WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5180125
RA5182125
RA5184125
RA5185125
RA5187125
LA BX
GRANULAR ACTIVATED CARBON WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5182225
RA5184225
RA5185225
RA5187225
OD 2,40” x ID 1,10”
LA 5 BX
LA 7 BX
LA 10 BX
LA 20 BX
HEIGHT
FLOW RATE l/h
5”
200
7”
300
10”
500
20”
750
A
127
183
252
510
B
70
70
70
70
C
25
25
25
25
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type LA 10 SX.
Testing mode: 20°C, 3 BAR
2
1,5
1
0,5
0
0
1000
2000
3000
Flow rate [l/h]
4000
259 | water treatment filter cartridges
