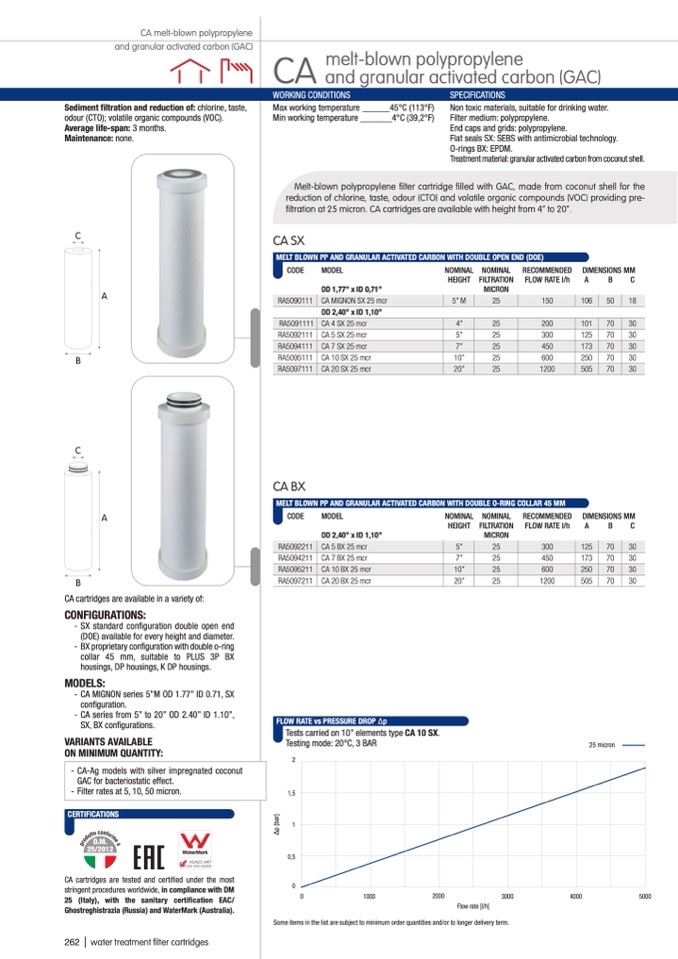

CA melt-blown polypropylene
and granular activated carbon (GAC)
melt-blown polypropylene
CA
and granular activated carbon (GAC)
Sediment filtration and reduction of: chlorine, taste,
odour (CTO); volatile organic compounds (VOC).
Average life-span: 3 months.
Maintenance: none.
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non toxic materials, suitable for drinking water.
Filter medium: polypropylene.
End caps and grids: polypropylene.
Flat seals SX: SEBS with antimicrobial technology.
O-rings BX: EPDM.
Treatment material: granular activated carbon from coconut shell.
C
A
B
C
A
B
CA cartridges are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
MODELS:
- CA MIGNON series 5”M OD 1.77” ID 0.71, SX
configuration.
- CA series from 5” to 20” OD 2.40” ID 1.10”,
SX, BX configurations.
VARIANTS AVAILABLE
ON MINIMUM QUANTITY:
- CA-Ag models with silver impregnated coconut
GAC for bacteriostatic effect.
- Filter rates at 5, 10, 50 micron.
CERTIFICATIONS
CA cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification EAC/
Ghostreghistrazia (Russia) and WaterMark (Australia).
Melt-blown polypropylene filter cartridge filled with GAC, made from coconut shell for the
reduction of chlorine, taste, odour (CTO) and volatile organic compounds (VOC) providing pre-
filtration at 25 micron. CA cartridges are available with height from 4” to 20”.
CA SX
MELT BLOWN PP AND GRANULAR ACTIVATED CARBON WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
262 | water treatment filter cartridges
RA5090111
RA5091111
RA5092111
RA5094111
RA5095111
RA5097111
CA BX
OD 1,77” x ID 0,71”
CA MIGNON SX 25 mcr
OD 2,40” x ID 1,10”
CA 4 SX 25 mcr
CA 5 SX 25 mcr
CA 7 SX 25 mcr
CA 10 SX 25 mcr
CA 20 SX 25 mcr
HEIGHT
5” M
4”
5”
7”
10”
20”
FILTRATION
FLOW RATE l/h
A
B
C
MICRON
25
150
106
50
18
25
200
101
70
30
25
300
125
70
30
25
450
173
70
30
25
600
250
70
30
25
1200
505
70
30
MELT BLOWN PP AND GRANULAR ACTIVATED CARBON WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5092211
RA5094211
RA5095211
RA5097211
OD 2,40” x ID 1,10”
CA 5 BX 25 mcr
CA 7 BX 25 mcr
CA 10 BX 25 mcr
CA 20 BX 25 mcr
HEIGHT
5”
7”
10”
20”
FILTRATION
MICRON
25
25
25
25
FLOW RATE l/h
A
300
125
450
173
600
250
1200
505
B
70
70
70
70
C
30
30
30
30
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type CA 10 SX.
Testing mode: 20°C, 3 BAR
25 micron
2
1,5
1
0,5
0
0
1000
2000
3000
4000
5000
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
Flow rate [l/h]
Δ
p
[
b
a
r
]
