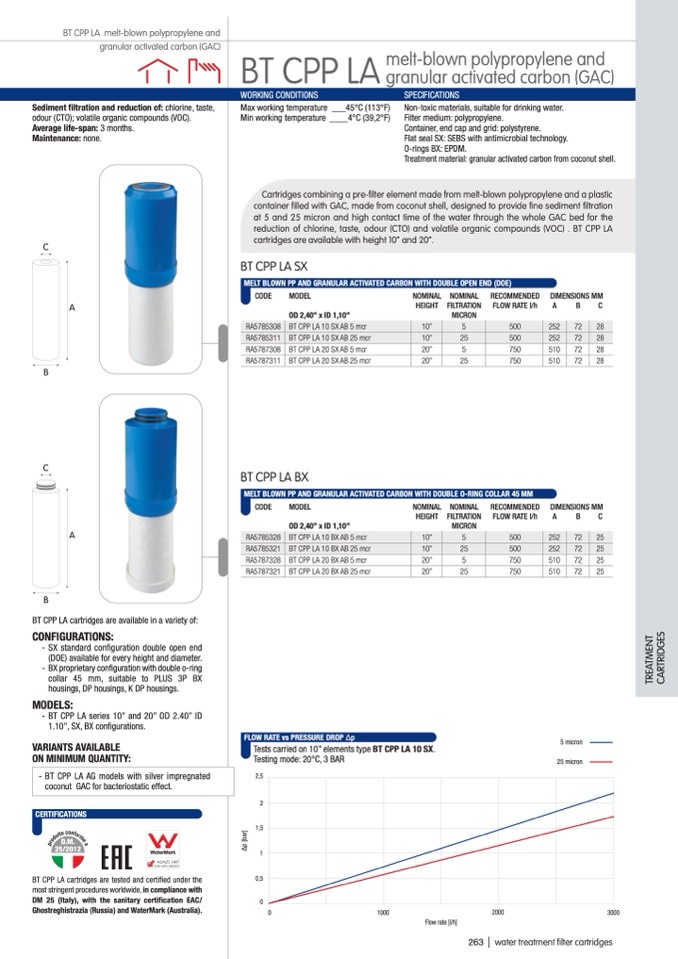

BT CPP LA melt-blown polypropylene and

granular activated carbon (GAC)

Sediment filtration and reduction of: chlorine, taste,

odour (CTO); volatile organic compounds (VOC).

Average life-span: 3 months.

Maintenance: none.

melt-blown polypropylene and

BT CPP LA

granular activated carbon (GAC)

C

A

B

C

A

B

BT CPP LA cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

- BX proprietary configuration with double o-ring

collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

MODELS:

- BT CPP LA series 10” and 20” OD 2.40” ID

1.10”, SX, BX configurations.

VARIANTS AVAILABLE

ON MINIMUM QUANTITY:

- BT CPP LA AG models with silver impregnated

coconut GAC for bacteriostatic effect.

CERTIFICATIONS

BT CPP LA cartridges are tested and certified under the

most stringent procedures worldwide, in compliance with

DM 25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

Cartridges combining a pre-filter element made from melt-blown polypropylene and a plastic

container filled with GAC, made from coconut shell, designed to provide fine sediment filtration

at 5 and 25 micron and high contact time of the water through the whole GAC bed for the

reduction of chlorine, taste, odour (CTO) and volatile organic compounds (VOC) . BT CPP LA

cartridges are available with height 10” and 20”.

WORKING CONDITIONS

Max working temperature ___45°C (113°F)

Min working temperature ____4°C (39,2°F)

SPECIFICATIONS

Non-toxic materials, suitable for drinking water.

Filter medium: polypropylene.

Container, end cap and grid: polystyrene.

Flat seal SX: SEBS with antimicrobial technology.

O-rings BX: EPDM.

Treatment material: granular activated carbon from coconut shell.

BT CPP LA SX

MELT BLOWN PP AND GRANULAR ACTIVATED CARBON WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5785308

RA5785311

RA5787308

RA5787311

OD 2,40” x ID 1,10”

BT CPP LA 10 SX AB 5 mcr

BT CPP LA 10 SX AB 25 mcr

BT CPP LA 20 SX AB 5 mcr

BT CPP LA 20 SX AB 25 mcr

HEIGHT FILTRATION

FLOW RATE l/h

A

MICRON

10”

5

500

252

10”

25

500

252

20”

5

750

510

20”

25

750

510

B

C

72

28

72

28

72

28

72

28

BT CPP LA BX

MELT BLOWN PP AND GRANULAR ACTIVATED CARBON WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5785328

RA5785321

RA5787328

RA5787321

BT CPP LA 10 BX AB 5 mcr

10”

BT CPP LA 10 BX AB 25 mcr

10”

BT CPP LA 20 BX AB 5 mcr

20”

BT CPP LA 20 BX AB 25 mcr

20”

OD 2,40” x ID 1,10”

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type BT CPP LA 10 SX.

Testing mode: 20°C, 3 BAR

2,5

2

1,5

1

0,5

0

5 micron

0

1000

2000

3000

HEIGHT

FILTRATION

FLOW RATE l/h

A

MICRON

5

500

252

25

500

252

5

750

510

25

750

510

B

72

72

72

72

C

25

25

25

25

Flow rate [l/h]

263 | water treatment filter cartridges
