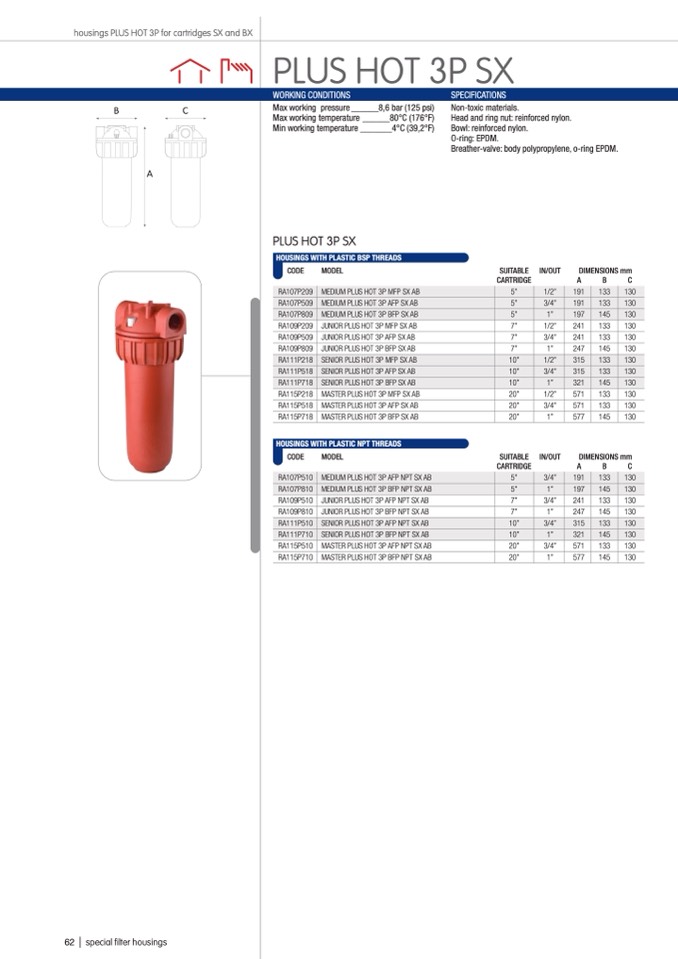

housings PLUS HOT 3P for cartridges SX and BX
PLUS HOT 3P SX
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
62 | special filter housings
Max working pressure ______8,6 bar (125 psi)
Max working temperature ______80°C (176°F)
Min working temperature _______4°C (39,2°F)
PLUS HOT 3P SX
HOUSINGS WITH PLASTIC BSP THREADS
Non-toxic materials.
Head and ring nut: reinforced nylon.
Bowl: reinforced nylon.
O-ring: EPDM.
Breather-valve: body polypropylene, o-ring EPDM.
CODE
RA109P209
RA109P509
RA109P809
RA115P218
RA115P518
RA115P718
MODEL
SUITABLE
CARTRIDGE
IN/OUT
DIMENSIONS mm
RA107P209
RA107P509
RA107P809
RA111P218
RA111P518
RA111P718
RA107P510
RA107P810
RA111P510
RA111P710
MEDIUM PLUS HOT 3P MFP SX AB
MEDIUM PLUS HOT 3P AFP SX AB
MEDIUM PLUS HOT 3P BFP SX AB
JUNIOR PLUS HOT 3P MFP SX AB
JUNIOR PLUS HOT 3P AFP SX AB
JUNIOR PLUS HOT 3P BFP SX AB
SENIOR PLUS HOT 3P MFP SX AB
SENIOR PLUS HOT 3P AFP SX AB
SENIOR PLUS HOT 3P BFP SX AB
MASTER PLUS HOT 3P MFP SX AB
MASTER PLUS HOT 3P AFP SX AB
MASTER PLUS HOT 3P BFP SX AB
MEDIUM PLUS HOT 3P AFP NPT SX AB
MEDIUM PLUS HOT 3P BFP NPT SX AB
JUNIOR PLUS HOT 3P AFP NPT SX AB
JUNIOR PLUS HOT 3P BFP NPT SX AB
SENIOR PLUS HOT 3P AFP NPT SX AB
SENIOR PLUS HOT 3P BFP NPT SX AB
MASTER PLUS HOT 3P AFP NPT SX AB
MASTER PLUS HOT 3P BFP NPT SX AB
5”
5”
5”
7”
7”
7”
10”
10”
10”
20”
20”
20”
5”
5”
7”
7”
10”
10”
20”
20”
1/2”
3/4”
1”
1/2”
3/4”
1”
1/2”
3/4”
1”
1/2”
3/4”
1”
3/4”
1”
3/4”
1”
3/4”
1”
3/4”
1”
A
B
C
130
130
130
130
130
130
191
191
197
241
241
247
315
315
321
571
571
577
191
197
241
247
315
321
571
577
133
133
145
133
133
145
133
133
145
133
133
145
133
145
133
145
133
145
133
145
130
130
130
130
130
130
HOUSINGS WITH PLASTIC NPT THREADS
CODE
RA109P510
RA109P810
RA115P510
RA115P710
MODEL
SUITABLE
CARTRIDGE
IN/OUT
DIMENSIONS mm
A
B
C
130
130
130
130
130
130
130
130
