housings PLUS HOT 3P for cartridges SX and BX
S
P
E
C
I
A
L
F
I
L
T
E
R
H
O
U
S
I
N
G
S

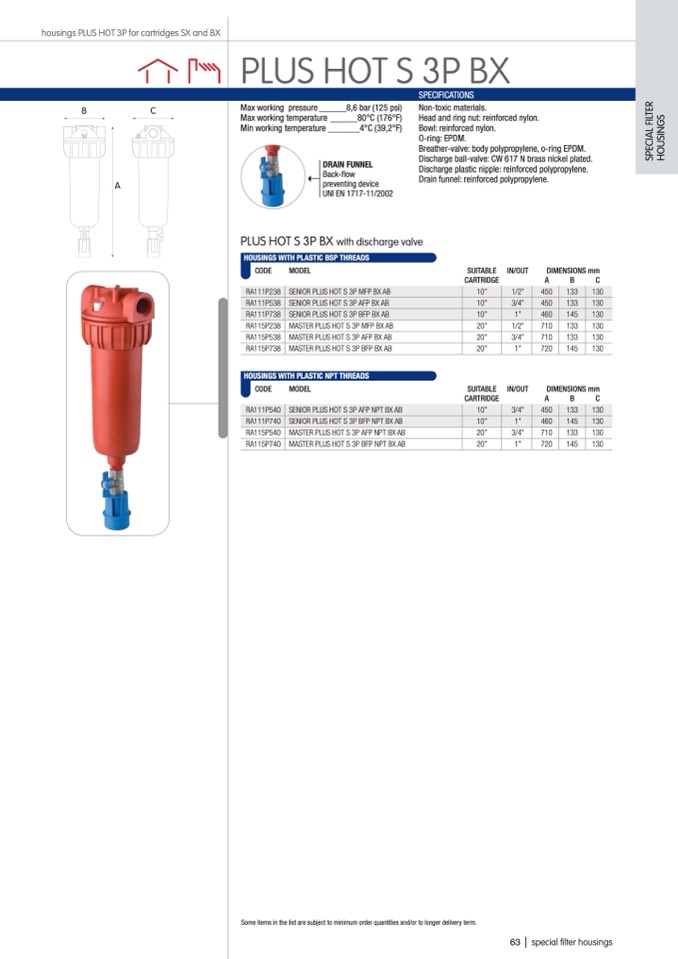

PLUS HOT S 3P BX
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
Max working pressure ______8,6 bar (125 psi)
Max working temperature ______80°C (176°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002
Non-toxic materials.
Head and ring nut: reinforced nylon.
Bowl: reinforced nylon.
O-ring: EPDM.
Breather-valve: body polypropylene, o-ring EPDM.
Discharge ball-valve: CW 617 N brass nickel plated.
Discharge plastic nipple: reinforced polypropylene.
Drain funnel: reinforced polypropylene.
PLUS HOT S 3P BX with discharge valve
HOUSINGS WITH PLASTIC BSP THREADS
CODE
RA115P238
RA115P538
RA115P738
MODEL
SUITABLE
CARTRIDGE
SUITABLE
CARTRIDGE
IN/OUT
IN/OUT
DIMENSIONS mm
HOUSINGS WITH PLASTIC NPT THREADS
CODE
RA115P540
RA115P740
MODEL
DIMENSIONS mm
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
A
B
C
130
130
130
A
B
C
130
130
63 | special filter housings
➝
RA111P238
SENIOR PLUS HOT S 3P MFP BX AB
10”
1/2”
450
133
130
RA111P538
SENIOR PLUS HOT S 3P AFP BX AB
10”
3/4”
450
133
130
RA111P738
SENIOR PLUS HOT S 3P BFP BX AB
10”
1”
460
145
130
MASTER PLUS HOT S 3P MFP BX AB
20”
1/2”
710
133
MASTER PLUS HOT S 3P AFP BX AB
20”
3/4”
710
133
MASTER PLUS HOT S 3P BFP BX AB
20”
1”
720
145
RA111P540
SENIOR PLUS HOT S 3P AFP NPT BX AB
10”
3/4”
450
133
130
RA111P740
SENIOR PLUS HOT S 3P BFP NPT BX AB
10”
1”
460
145
130
MASTER PLUS HOT S 3P AFP NPT BX AB
20”
3/4”
710
133
MASTER PLUS HOT S 3P BFP NPT BX AB
20”
1”
720
145
