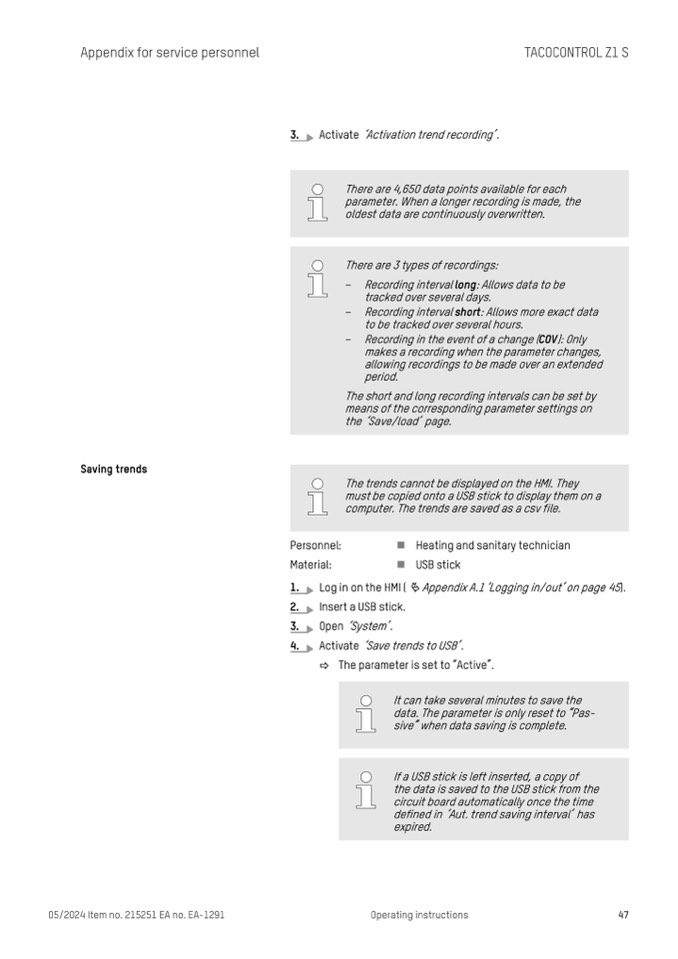

Appendix for service personnel

TACOCONTROL Z1 S

Saving trends

3.

Activate ‘Activation trend recording’ .

There are 4,650 data points available for each

parameter. When a longer recording is made, the

oldest data are continuously overwritten.

There are 3 types of recordings:

– Recording interval long: Allows data to be

tracked over several days.

– Recording interval short: Allows more exact data

to be tracked over several hours.

– Recording in the event of a change (COV): Only

makes a recording when the parameter changes,

allowing recordings to be made over an extended

period.

The short and long recording intervals can be set by

means of the corresponding parameter settings on

the ‘Save/load’ page.

The trends cannot be displayed on the HMI. They

must be copied onto a USB stick to display them on a

computer. The trends are saved as a csv file.

Personnel:

n Heating and sanitary technician

Material:

n USB stick

1.

Log in on the HMI (

Ä Appendix A.1 ‘Logging in/out’ on page 45).

2.

Insert a USB stick.

3.

Open ‘System’ .

4.

Activate ‘Save trends to USB’ .

ð The parameter is set to “Active”.

05/2024 Item no. 215251 EA no. EA-1291

Operating instructions

47

It can take several minutes to save the

data. The parameter is only reset to “Pas-

sive” when data saving is complete.

If a USB stick is left inserted, a copy of

the data is saved to the USB stick from the

circuit board automatically once the time

defined in ‘Aut. trend saving interval’ has

expired.
