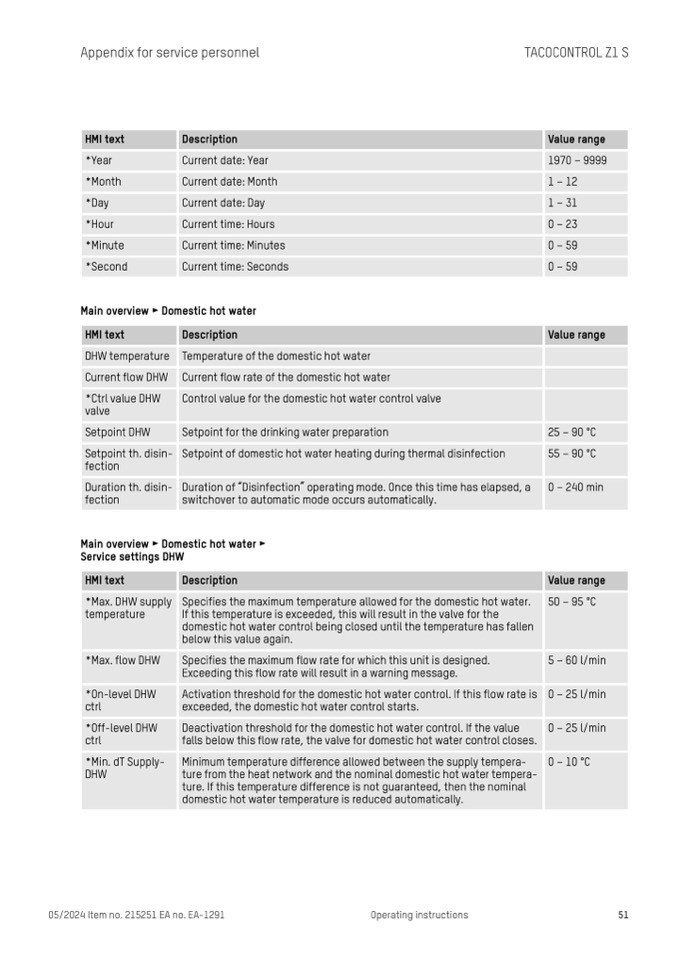

Appendix for service personnel
TACOCONTROL Z1 S
HMI text
Description
Value range
*Year
Current date: Year
1970 – 9999
*Month
Current date: Month
1 – 12
*Day
Current date: Day
1 – 31
*Hour
Current time: Hours
0 – 23
*Minute
Current time: Minutes
0 – 59
*Second
Current time: Seconds
0 – 59
Main overview ► Domestic hot water
HMI text
Description
Value range
DHW temperature
Temperature of the domestic hot water
Current flow DHW
Current flow rate of the domestic hot water
*Ctrl value DHW
valve
Control value for the domestic hot water control valve
Setpoint DHW
Setpoint for the drinking water preparation
25 – 90 °C
Setpoint th. disin-
fection
Setpoint of domestic hot water heating during thermal disinfection
55 – 90 °C
Duration th. disin-
fection
Duration of “Disinfection” operating mode. Once this time has elapsed, a
switchover to automatic mode occurs automatically.
0 – 240 min
Main overview ► Domestic hot water ►
Service settings DHW
HMI text
Description
Value range
*Max. DHW supply
temperature
Specifies the maximum temperature allowed for the domestic hot water.
If this temperature is exceeded, this will result in the valve for the
domestic hot water control being closed until the temperature has fallen
below this value again.
50 – 95 °C
*Max. flow DHW
Specifies the maximum flow rate for which this unit is designed.
Exceeding this flow rate will result in a warning message.
5 – 60 l/min
*On-level DHW
ctrl
Activation threshold for the domestic hot water control. If this flow rate is
exceeded, the domestic hot water control starts.
0 – 25 l/min
*Off-level DHW
ctrl
Deactivation threshold for the domestic hot water control. If the value
falls below this flow rate, the valve for domestic hot water control closes.
0 – 25 l/min
*Min. dT Supply-
DHW
Minimum temperature difference allowed between the supply tempera-
ture from the heat network and the nominal domestic hot water tempera-
ture. If this temperature difference is not guaranteed, then the nominal
domestic hot water temperature is reduced automatically.
0 – 10 °C
05/2024 Item no. 215251 EA no. EA-1291
Operating instructions
51
