• Le saldature delle parti in pressione sono tutte

eseguite da personale quali

ficato ed approvato

secondo norme EN.

• Tubo di soffiaggio forato in AISI 316 viene installato

all’interno della camera di combustione.

• Il portello antiscoppio è posizionato nella parte

bassa della camera fumo posteriore ed

è riparato da

una griglia metallica di protezione.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

più recenti norme nazionali ed europee in materia di

recipienti a pressione.

• Certificazione come insieme secondo Direttiva PED.

• L’ispezionabilit

à lato acqua è garantita da un passo

uomo sul colmo caldaia e un passo mano nella parte

standards.

• AISI 316 blowing pipe with holes is installed inside

the combustion chamber.

• Anti-blast wicket gate is located in the lower part

of the rear smokebox and it’s sheltered from a

protection metal grid.

• These modern-concept and high-efficiency

generators have been designed and developed in

compliance with European Directive 2014/68/UE

(PED) and the most recent national and European

standards on pressurized recipients.

• Certi

fied as an assembly in accordance with the PED

Directive.

• The water circuit can be inspected through a

manhole at the top of the boiler and a hand opening

ring at the bottom.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

inferiore.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

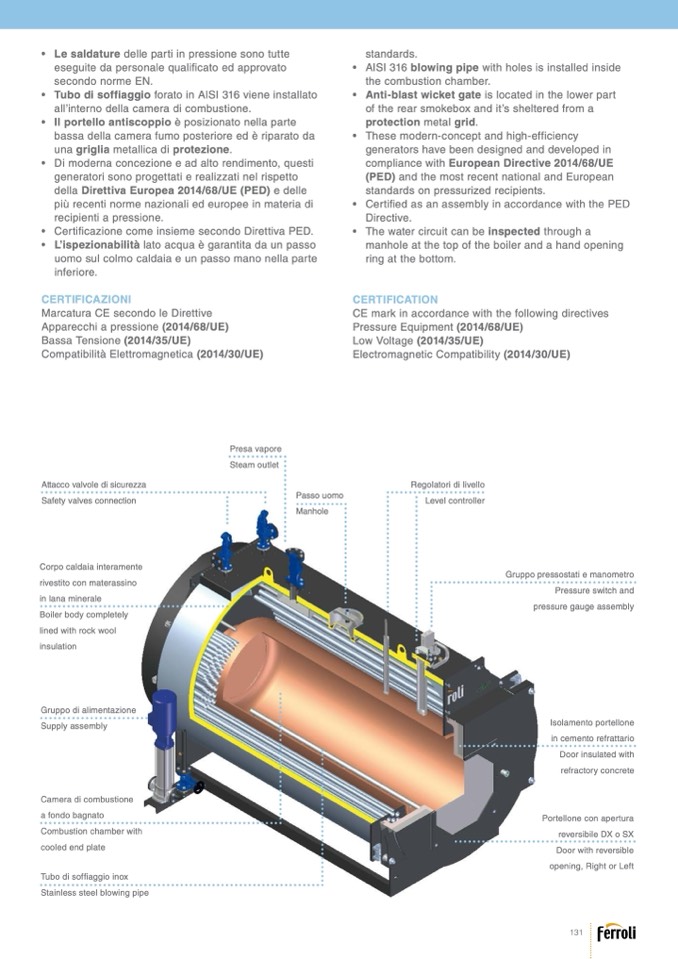

Attacco valvole di sicurezza

Safety valves connection

Corpo caldaia interamente

rivestito con materassino

in lana minerale

Boiler body completely

lined with rock wool

insulation

Gruppo di alimentazione

Supply assembly

Camera di combustione

a fondo bagnato

Combustion chamber with

cooled end plate

Tubo di soffiaggio inox

Stainless steel blowing pipe

Passo uomo

Manhole

Regolatori di livello

Level controller

Presa vapore

Steam outlet

Gruppo pressostati e manometro

Pressure switch and

pressure gauge assembly

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Portellone con apertura

reversibile DX o SX

Door with reversible

opening, Right or Left

131
