• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• L’ispezionabilità lato acqua

è garantita da un passo

uomo sul colmo caldaia e un passo mano nella parte

inferiore.

compliance with European Directive 2014/68/UE

(PED) and the most recent national and European

standards on pressurised recipients.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• AISI 430 stainless steel casing.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

• Mantellatura in acciaio inox (AISI 430).

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

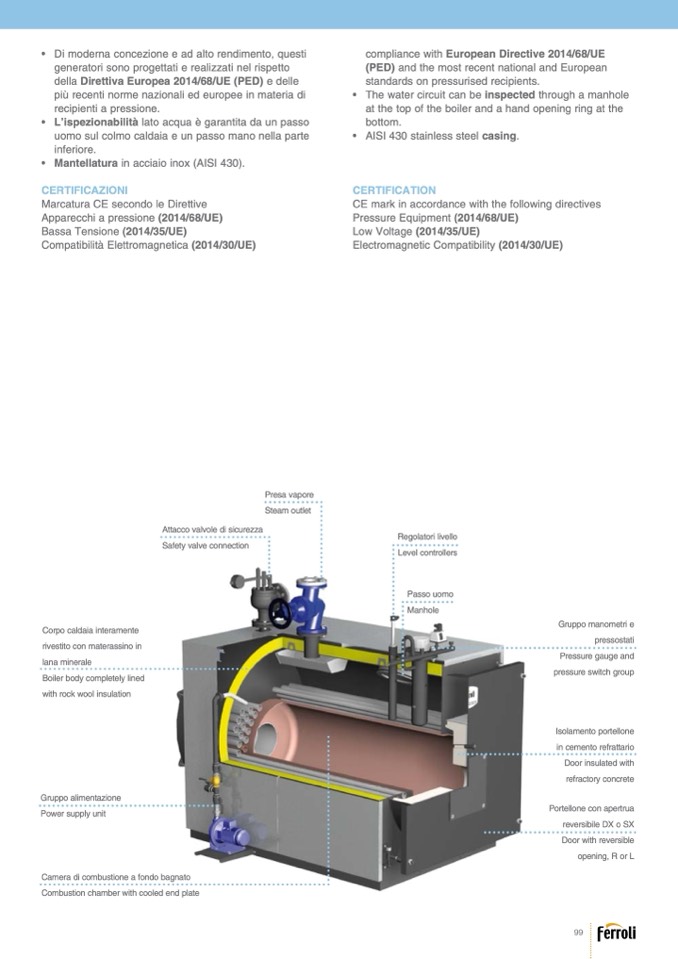

Presa vapore

Steam outlet

Attacco valvole di sicurezza

Safety valve connection

Regolatori livello

Level controllers

Passo uomo

Manhole

Corpo caldaia interamente

rivestito con materassino in

lana minerale

Boiler body completely lined

with rock wool insulation

Gruppo alimentazione

Power supply unit

Gruppo manometri e

pressostati

Pressure gauge and

pressure switch group

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Portellone con apertrua

reversibile DX o SX

Door with reversible

opening, R or L

Camera di combustione a fondo bagnato

Combustion chamber with cooled end plate
