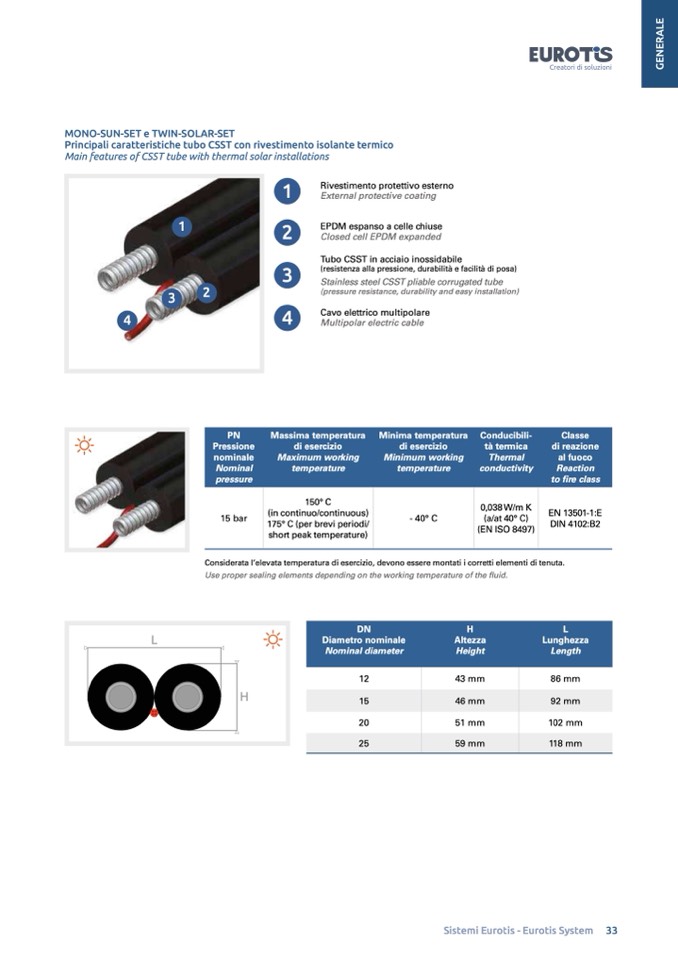

MONO-SUN-SET e TWIN-SOLAR-SET

Principali caratteristiche tubo CSST con rivestimento isolante termico

Main features of CSST tube with thermal solar installations

1

2

3

4

Considerata l’elevata temperatura di esercizio, devono essere montati i corretti elementi di tenuta.

Use proper sealing elements depending on the working temperature of the fluid.

2

4

1

3

Rivestimento protettivo esterno

External protective coating

EPDM espanso a celle chiuse

Closed cell EPDM expanded

Tubo CSST in acciaio inossidabile

(resistenza alla pressione, durabilità e facilità di posa)

Stainless steel CSST pliable corrugated tube

(pressure resistance, durability and easy installation)

Cavo elettrico multipolare

Multipolar electric cable

PN

Pressione

nominale

Nominal

pressure

Massima temperatura

di esercizio

Maximum working

temperature

Minima temperatura

di esercizio

Minimum working

temperature

Conducibili-

tà termica

Thermal

conductivity

Classe

di reazione

al fuoco

Reaction

to fire class

15 bar

150° C

(in continuo/continuous)

175° C (per brevi periodi/

short peak temperature)

- 40° C

0,038 W/m K

(a/at 40° C)

(EN ISO 8497)

EN 13501-1:E

DIN 4102:B2

L

H

DN

Diametro nominale

Nominal diameter

H

Altezza

Height

L

Lunghezza

Length

12

43 mm

86 mm

15

46 mm

92 mm

20

51 mm

102 mm

25

59 mm

118 mm
