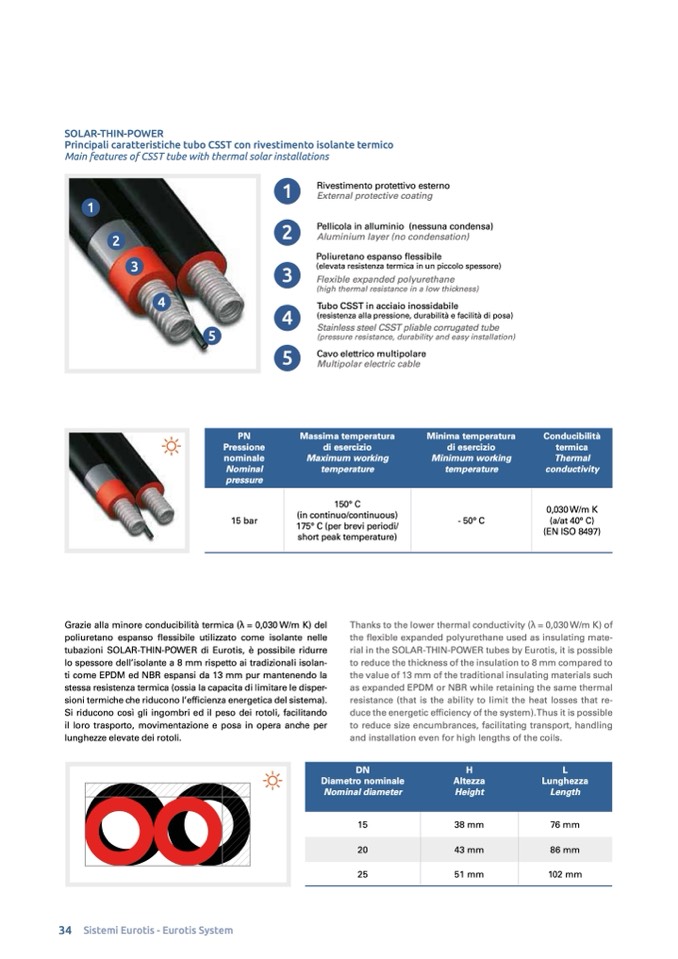

SOLAR-THIN-POWER

Principali caratteristiche tubo CSST con rivestimento isolante termico

Main features of CSST tube with thermal solar installations

1

2

3

4

5

1

2

3

4

5

Rivestimento protettivo esterno

External protective coating

Pellicola in alluminio (nessuna condensa)

Aluminium layer (no condensation)

Poliuretano espanso flessibile

(elevata resistenza termica in un piccolo spessore)

Flexible expanded polyurethane

(high thermal resistance in a low thickness)

Tubo CSST in acciaio inossidabile

(resistenza alla pressione, durabilità e facilità di posa)

Stainless steel CSST pliable corrugated tube

(pressure resistance, durability and easy installation)

Cavo elettrico multipolare

Multipolar electric cable

PN

Pressione

nominale

Nominal

pressure

Massima temperatura

di esercizio

Maximum working

temperature

Minima temperatura

di esercizio

Minimum working

temperature

Conducibilità

termica

Thermal

conductivity

15 bar

150° C

(in continuo/continuous)

175° C (per brevi periodi/

short peak temperature)

- 50° C

0,030 W/m K

(a/at 40° C)

(EN ISO 8497)

Grazie alla minore conducibilità termica (λ = 0,030 W/m K) del

poliuretano espanso flessibile utilizzato come isolante nelle

tubazioni SOLAR-THIN-POWER di Eurotis, è possibile ridurre

lo spessore dell’isolante a 8 mm rispetto ai tradizionali isolan-

ti come EPDM ed NBR espansi da 13 mm pur mantenendo la

stessa resistenza termica (ossia la capacita di limitare le disper-

sioni termiche che riducono l’efficienza energetica del sistema).

Si riducono così gli ingombri ed il peso dei rotoli, facilitando

il loro trasporto, movimentazione e posa in opera anche per

lunghezze elevate dei rotoli.

Thanks to the lower thermal conductivity (λ = 0,030 W/m K) of

the flexible expanded polyurethane used as insulating mate-

rial in the SOLAR-THIN-POWER tubes by Eurotis, it is possible

to reduce the thickness of the insulation to 8 mm compared to

the value of 13 mm of the traditional insulating materials such

as expanded EPDM or NBR while retaining the same thermal

resistance (that is the ability to limit the heat losses that re-

duce the energetic efficiency of the system).Thus it is possible

to reduce size encumbrances, facilitating transport, handling

and installation even for high lengths of the coils.

DN

Diametro nominale

Nominal diameter

H

Altezza

Height

L

Lunghezza

Length

15

38 mm

76 mm

20

43 mm

86 mm

25

51 mm

102 mm

34 Sistemi Eurotis - Eurotis System
