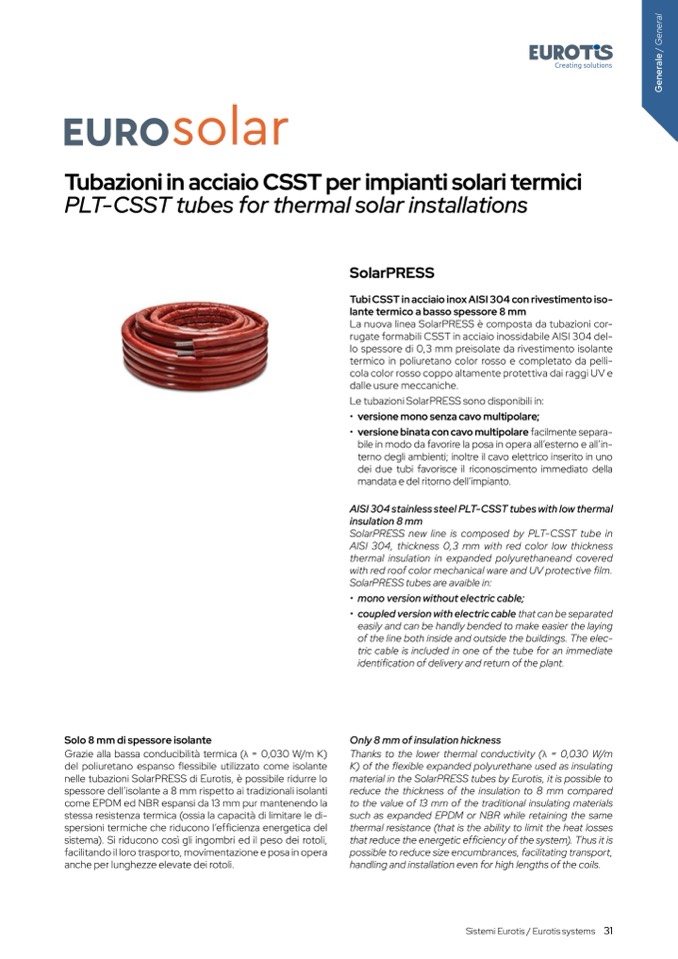

Tubazioni in acciaio CSST per impianti solari termici

PLT-CSST tubes for thermal solar installations

Solo 8 mm di spessore isolante

Grazie alla bassa conducibilit

à termica (λ = 0,030 W/m K)

del poliuretano espanso

flessibile utilizzato come isolante

nelle tubazioni SolarPRESS di Eurotis,

è possibile ridurre lo

spessore dell’isolante a 8 mm rispetto ai tradizionali isolanti

come EPDM ed NBR espansi da 13 mm pur mantenendo la

stessa resistenza termica (ossia la capacit

à di limitare le di-

spersioni termiche che riducono l’ef

ficienza energetica del

sistema). Si riducono cos

ì gli ingombri ed il peso dei rotoli,

facilitando il loro trasporto, movimentazione e posa in opera

anche per lunghezze elevate dei rotoli.

SolarPRESS

Tubi CSST in acciaio inox AISI 304 con rivestimento iso-

lante termico a basso spessore 8 mm

La nuova linea SolarPRESS

è composta da tubazioni cor-

rugate formabili CSST in acciaio inossidabile AISI 304 del-

lo spessore di 0,3 mm preisolate da rivestimento isolante

termico in poliuretano color rosso e completato da pelli-

cola color rosso coppo altamente protettiva dai raggi UV e

dalle usure meccaniche.

Le tubazioni SolarPRESS sono disponibili in:

• versionemonosenzacavomultipolare;

• versionebinataconcavomultipolarefacilmentesepara-

bile in modo da favorire la posa in opera all’esterno e all’in-

terno degli ambienti; inoltre il cavo elettrico inserito in uno

dei due tubi favorisce il riconoscimento immediato della

mandata e del ritorno dell’impianto.

AISI 304 stainless steel PLT-CSST tubes with low thermal

insulation 8 mm

SolarPRESS new line is composed by PLT-CSST tube in

AISI 304, thickness 0,3 mm with red color low thickness

thermal insulation in expanded polyurethaneand covered

with red roof color mechanical ware and UV protective film.

SolarPRESS tubes are avaible in:

• mono version without electric cable;

• coupledversionwithelectriccablethatcanbeseparated

easily and can be handly bended to make easier the laying

of the line both inside and outside the buildings. The elec-

tric cable is included in one of the tube for an immediate

identi

fication of delivery and return of the plant.

Only 8 mm of insulation hickness

Thanks to the lower thermal conductivity (λ = 0,030 W/m

K) of the flexible expanded polyurethane used as insulating

material in the SolarPRESS tubes by Eurotis, it is possible to

reduce the thickness of the insulation to 8 mm compared

to the value of 13 mm of the traditional insulating materials

such as expanded EPDM or NBR while retaining the same

thermal resistance (that is the ability to limit the heat losses

that reduce the energetic efficiency of the system). Thus it is

possible to reduce size encumbrances, facilitating transport,

handling and installation even for high lengths of the coils.

Sistemi Eurotis / Eurotis systems 31
