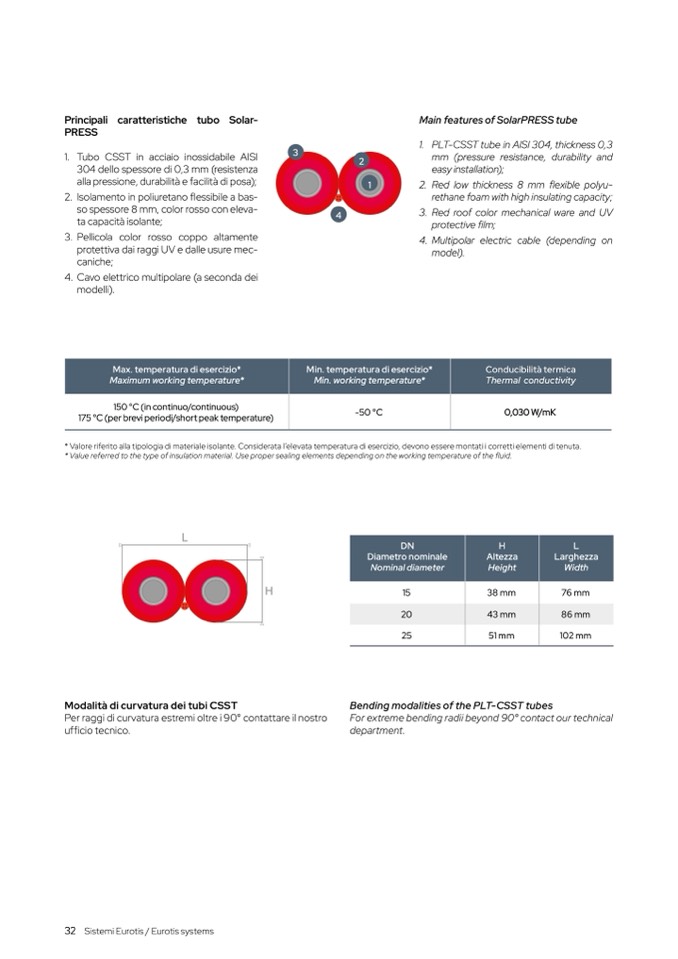

Principali caratteristiche tubo Solar-

PRESS

1. Tubo CSST in acciaio inossidabile AISI

304 dello spessore di 0,3 mm (resistenza

alla pressione, durabilit

à e facilit

à di posa);

2. Isolamento in poliuretano flessibile a bas-

so spessore 8 mm, color rosso con eleva-

ta capacit

à isolante;

3. Pellicola color rosso coppo altamente

protettiva dai raggi UV e dalle usure mec-

caniche;

4. Cavo elettrico multipolare (a seconda dei

modelli).

3

2

Main features of SolarPRESS tube

1. PLT-CSST tube in AISI 304, thickness 0,3

mm (pressure resistance, durability and

easy installation);

2. Red low thickness 8 mm flexible polyu-

rethane foam with high insulating capacity;

3. Red roof color mechanical ware and UV

protective film;

4. Multipolar electric cable (depending on

model).

4

1

Max. temperatura di esercizio*

Maximum working temperature*

Min. temperatura di esercizio*

Min. working temperature*

Conducibilit

à termica

Thermal conductivity

150 °C (in continuo/continuous)

175 °C (per brevi periodi/short peak temperature)

-50 °C

0,030 W/mK

* Valore riferito alla tipologia di materiale isolante. Considerata l’elevata temperatura di esercizio, devono essere montati i corretti elementi di tenuta.

* Value referred to the type of insulation material. Use proper sealing elements depending on the working temperature of the fluid.

DN

Diametro nominale

Nominal diameter

H

Altezza

Height

L

Larghezza

Width

H

20

43 mm

86 mm

25

51 mm

102 mm

Modalit

à di curvatura dei tubi CSST

Per raggi di curvatura estremi oltre i 90° contattare il nostro

ufficio tecnico.

15

38 mm

76 mm

Bending modalities of the PLT-CSST tubes

For extreme bending radii beyond 90° contact our technical

department.

32 Sistemi Eurotis / Eurotis systems
