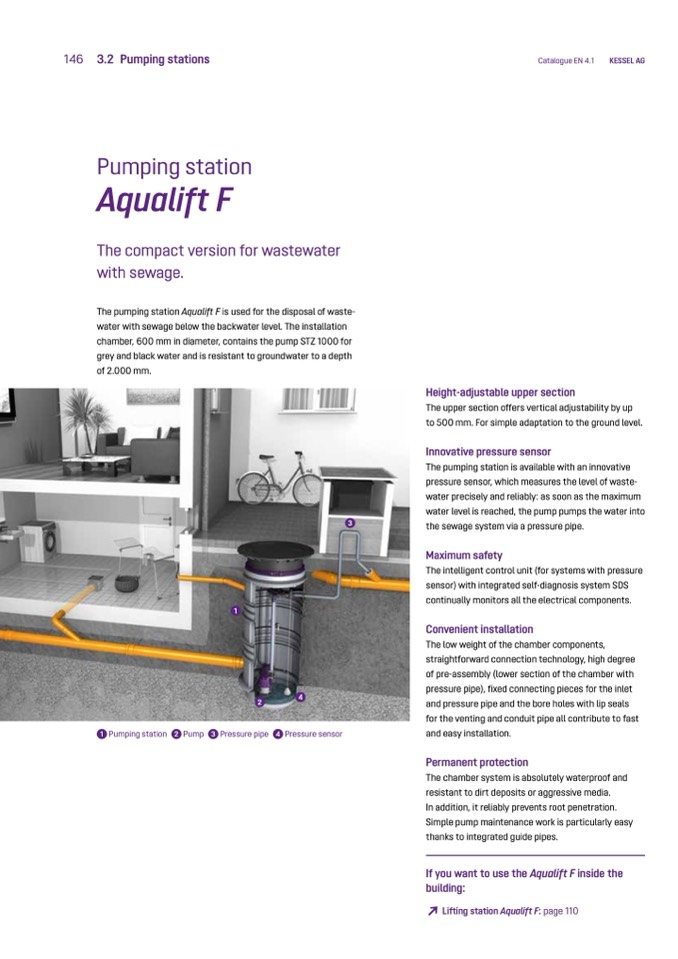

146 3.2 Pumping stations

Catalogue EN 4.1

KESSEL AG

Pumping station

Aqualift F

The compact version for wastewater

with sewage.

The pumping station Aqualift F is used for the disposal of waste-

water with sewage below the backwater level. The installation

chamber, 600 mm in diameter, contains the pump STZ 1000 for

grey and black water and is resistant to groundwater to a depth

of 2.000 mm.

3

Height-adjustable upper section

The upper section offers vertical adjustability by up

to 500 mm. For simple adaptation to the ground level.

Innovative pressure sensor

The pumping station is available with an innovative

pressure sensor, which measures the level of waste-

water precisely and reliably: as soon as the maximum

water level is reached, the pump pumps the water into

the sewage system via a pressure pipe.

Maximum safety

The intelligent control unit (for systems with pressure

sensor) with integrated self-diagnosis system SDS

continually monitors all the electrical components.

Convenient installation

The low weight of the chamber components,

straightforward connection technology, high degree

of pre-assembly (lower section of the chamber with

pressure pipe), fixed connecting pieces for the inlet

and pressure pipe and the bore holes with lip seals

for the venting and conduit pipe all contribute to fast

and easy installation.

Permanent protection

The chamber system is absolutely waterproof and

resistant to dirt deposits or aggressive media.

In addition, it reliably prevents root penetration.

Simple pump maintenance work is particularly easy

thanks to integrated guide pipes.

If you want to use the Aqualift F inside the

building:

↗

Lifting station Aqualift F: page 110

1

2

4

4 Pressure sensor

1 Pumping station

2 Pump 3

Pressure pipe
