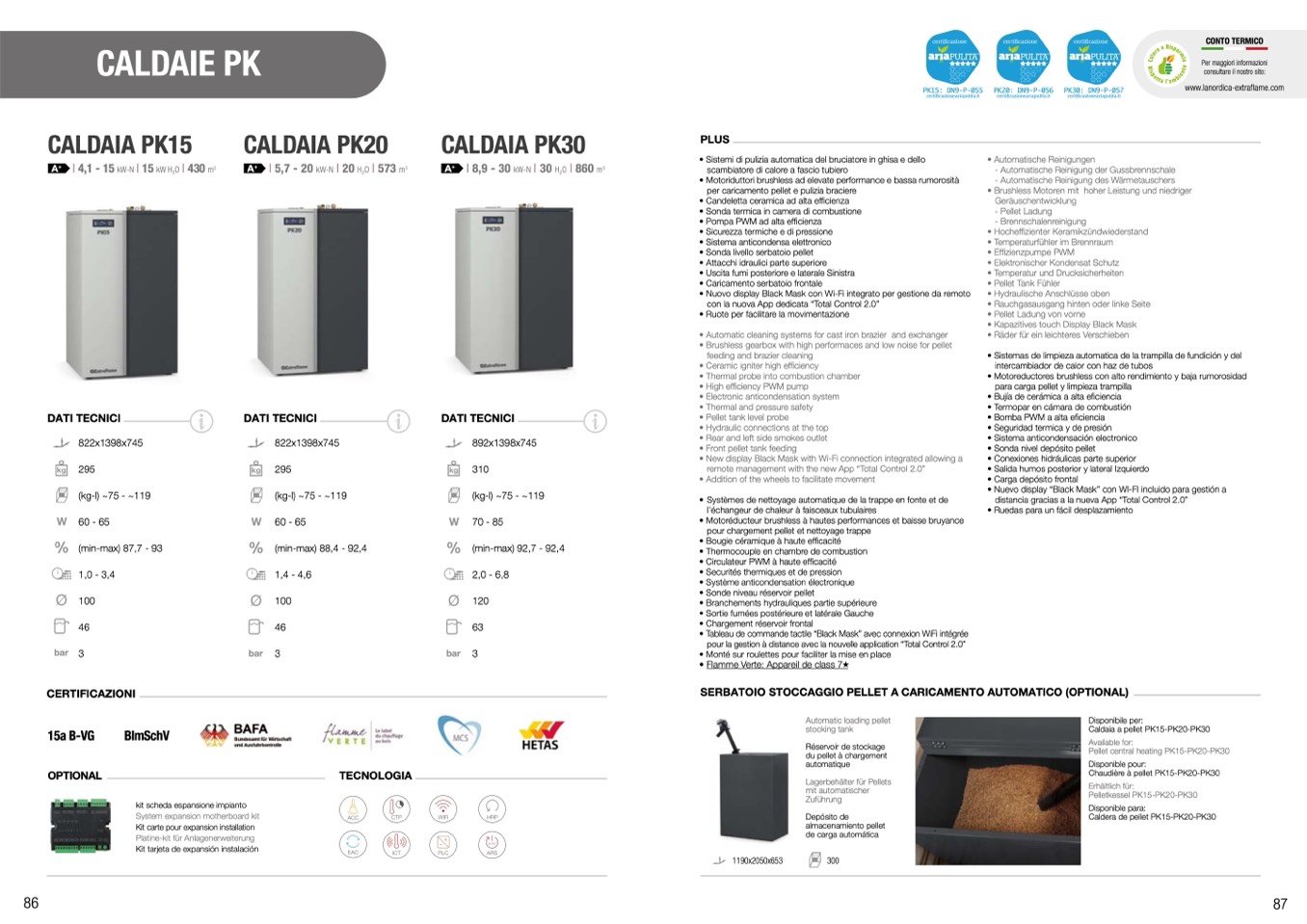

CALDAIE PK

CALDAIA PK15

CALDAIA PK20

CALDAIA PK30

A

+

| 4,1 - 15 kW-N | 15 kW H O | 430 m

3

A

+

| 5,7 - 20 kW-N | 20 H O | 573 m

3

A

+

| 8,9 - 30 kW-N | 30 H O | 860 m

3

2

2

2

PK15: DN9-P-055

PK20: DN9-P-056

PK30: DN9-P-057

Per maggiori informazioni

consultare il nostro sito:

www.lanordica-extraflame.com

DATI TECNICI

822x1398x745

295

(kg-l) ~75 - ~119

60 - 65

(min-max) 87,7 - 93

1,0 - 3,4

100

46

��� 3

CERTIFICAZIONI

DATI TECNICI

822x1398x745

295

(kg-l) ~75 - ~119

60 - 65

(min-max) 88,4 - 92,4

1,4 - 4,6

DATI TECNICI

• Sistemi di pulizia automatica del bruciatore in ghisa e dello

scambiatore di calore a fascio tubiero

• Motoriduttori brushless ad elevate performance e bassa rumorosità

per caricamento pellet e pulizia braciere

• Candeletta ceramica ad alta efficienza

• Sonda termica in camera di combustione

• Pompa PWM ad alta efficienza

• Sicurezza termiche e di pressione

• Sistema anticondensa elettronico

• Sonda livello serbatoio pellet

• Attacchi idraulici parte superiore

• Uscita fumi posteriore e laterale Sinistra

• Caricamento serbatoio frontale

• Nuovo display Black Mask con Wi-Fi integrato per gestione da remoto

con la nuova App dedicata “Total Control 2.0”

• Ruote per facilitare la movimentazione

• Automatic cleaning systems for cast iron brazier and exchanger

• Brushless gearbox with high performaces and low noise for pellet

feeding and brazier cleaning

• Ceramic igniter high efficiency

• Thermal probe into combustion chamber

• High efficiency PWM pump

• Electronic anticondensation system

• Thermal and pressure safety

• Pellet tank level probe

• Hydraulic connections at the top

• Rear and left side smokes outlet

• Front pellet tank feeding

• New display Black Mask with Wi-Fi connection integrated allowing a

remote management with the new App “Total Control 2.0”

• Addition of the wheels to facilitate movement

• Systèmes de nettoyage automatique de la trappe en fonte et de

l’échangeur de chaleur à faisceaux tubulaires

• Motoréducteur brushless à hautes performances et baisse bruyance

pour chargement pellet et nettoyage trappe

• Bougie céramique à haute efficacité

• Thermocouple en chambre de combustion

• Circulateur PWM à haute efficacité

• Securités thermiques et de pression

• Système anticondensation électronique

• Sonde niveau réservoir pellet

• Branchements hydrauliques partie supérieure

• Sortie fumées postérieure et latérale Gauche

• Chargement réservoir frontal

• Tableau de commande tactile “Black Mask” avec connexion WiFi intégrée

pour la gestion à distance avec la nouvelle application “Total Control 2.0”

• Monté sur roulettes pour faciliter la mise en place

• Flamme Verte: Appareil de class 7

• Automatische Reinigungen

- Automatische Reinigung der Gussbrennschale

- Automatische Reinigung des Wärmetauschers

• Brushless Motoren mit hoher Leistung und niedriger

Geräuschentwicklung

- Pellet Ladung

- Brennschalenreinigung

• Hocheffizienter Keramikzündwiederstand

• Temperaturfühler im Brennraum

• Effizienzpumpe PWM

• Elektronischer Kondensat Schutz

• Temperatur und Drucksicherheiten

• Pellet Tank Fühler

• Hydraulische Anschlüsse oben

• Rauchgasausgang hinten oder linke Seite

• Pellet Ladung von vorne

• Kapazitives touch Display Black Mask

• Räder für ein leichteres Verschieben

• Sistemas de limpieza automatica de la trampilla de fundición y del

intercambiador de calor con haz de tubos

• Motoreductores brushless con alto rendimiento y baja rumorosidad

para carga pellet y limpieza trampilla

• Bujía de cerámica a alta eficiencia

• Termopar en cámara de combustión

• Bomba PWM a alta eficiencia

• Seguridad termica y de presión

• Sistema anticondensación electronico

• Sonda nivel depósito pellet

• Conexiones hidráulicas parte superior

• Salida humos posterior y lateral Izquierdo

• Carga depósito frontal

• Nuevo display “Black Mask” con WI-FI incluido para gestión a

distancia gracias a la nueva App “Total Control 2.0”

• Ruedas para un fácil desplazamiento

15a B-VG

OPTIONAL

BlmSchV

kit scheda espansione impianto

TECNOLOGIA

Automatic loading pellet

stocking tank

Réservoir de stockage

du pellet à chargement

automatique

Lagerbehälter für Pellets

mit automatischer

Zuführung

Depósito de

almacenamiento pellet

de carga automática

Disponibile per:

Caldaia a pellet PK15-PK20-PK30

Available for:

Pellet central heating PK15-PK20-PK30

Disponible pour:

Chaudière à pellet PK15-PK20-PK30

Erhältlich für:

Pelletkessel PK15-PK20-PK30

Disponible para:

Caldera de pellet PK15-PK20-PK30

System expansion motherboard kit

Kit carte pour expansion installation

Platine-kit für Anlagenerweiterung

Kit tarjeta de expansión instalación

���

100

46

3

���

892x1398x745

310

(kg-l) ~75 - ~119

70 - 85

(min-max) 92,7 - 92,4

2,0 - 6,8

120

63

3

PLUS

SERBATOIO STOCCAGGIO PELLET A CARICAMENTO AUTOMATICO (OPTIONAL)

1190x2050x653

300

CONTO TERMICO
