ACCESSORI DI COMANDO E CONTROLLO PER ATTUATORI PNEUMATICI

ACCESSORIES AND CONTROL DEVICES FOR PNEUMATIC ACTUATORS

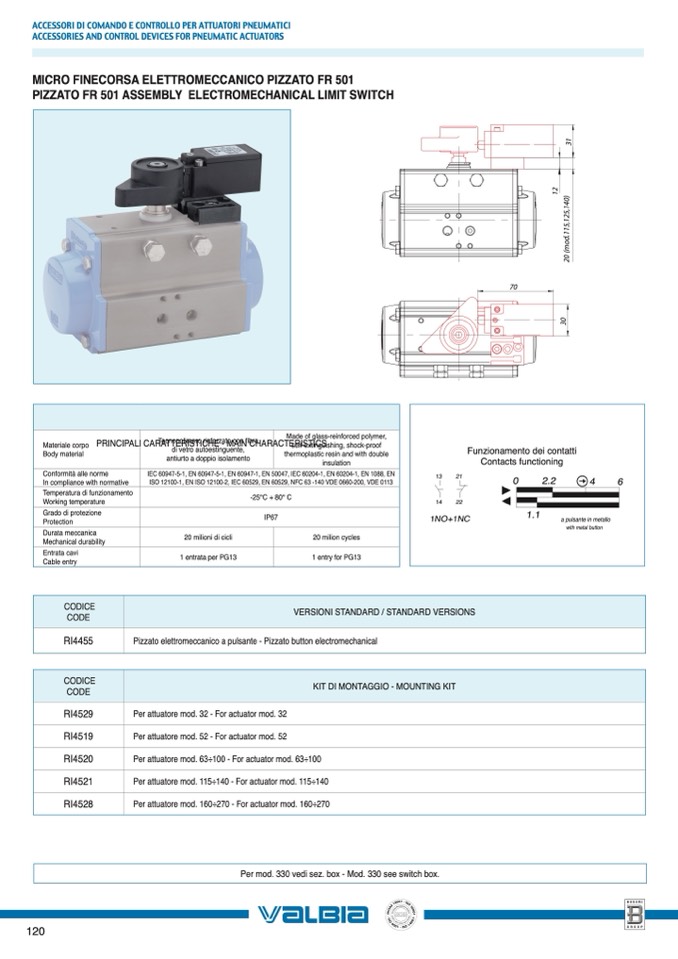

MICRO FINECORSA ELETTROMECCANICO PIZZATO FR 501

PIZZATO FR 501 ASSEMBLY ELECTROMECHANICAL LIMIT SWITCH

3

0

1

2

2

0

(

m

o

d

.

1

1

5

,

1

2

5

,

1

4

0

)

3

1

120

Materiale corpo

Body material

Conformità alle norme

In compliance with normative

Temperatura di funzionamento

Working temperature

Grado di protezione

Protection

Durata meccanica

Mechanical durability

Entrata cavi

Cable entry

CODICE

CODE

RI4455

CODICE

CODE

RI4529

RI4519

RI4520

RI4521

RI4528

Tecnopolimero rinforzato con fibra

Funzionamento dei contatti

Contacts functioning

Made of glass-reinforced polymer,

PRINCIPALI CARATTERISTICHE - MAIN CHARACTEsRelfI-SexTtiInCgSuishing, shock-proof

di vetro autoestinguente,

thermoplastic resin and with double

antiurto a doppio isolamento

insulation

IEC 60947-5-1, EN 60947-5-1, EN 60947-1, EN 50047, IEC 60204-1, EN 60204-1, EN 1088, EN

ISO 12100-1, EN ISO 12100-2, IEC 60529, EN 60529, NFC 63 -140 VDE 0660-200, VDE 0113

13

21

14

22

1NO+1NC

0

2.2

4

6

a pulsante in metallo

with metal button

20 milioni di cicli

1 entrata per PG13

20 milion cycles

1 entry for PG13

-25°C + 80° C

IP67

1.1

VERSIONI STANDARD / STANDARD VERSIONS

Pizzato elettromeccanico a pulsante - Pizzato button electromechanical

KIT DI MONTAGGIO - MOUNTING KIT

Per attuatore mod. 32 - For actuator mod. 32

Per attuatore mod. 52 - For actuator mod. 52

Per attuatore mod. 63÷100 - For actuator mod. 63÷100

Per attuatore mod. 115÷140 - For actuator mod. 115÷140

Per attuatore mod. 160÷270 - For actuator mod. 160÷270

Per mod. 330 vedi sez. box - Mod. 330 see switch box.

70
