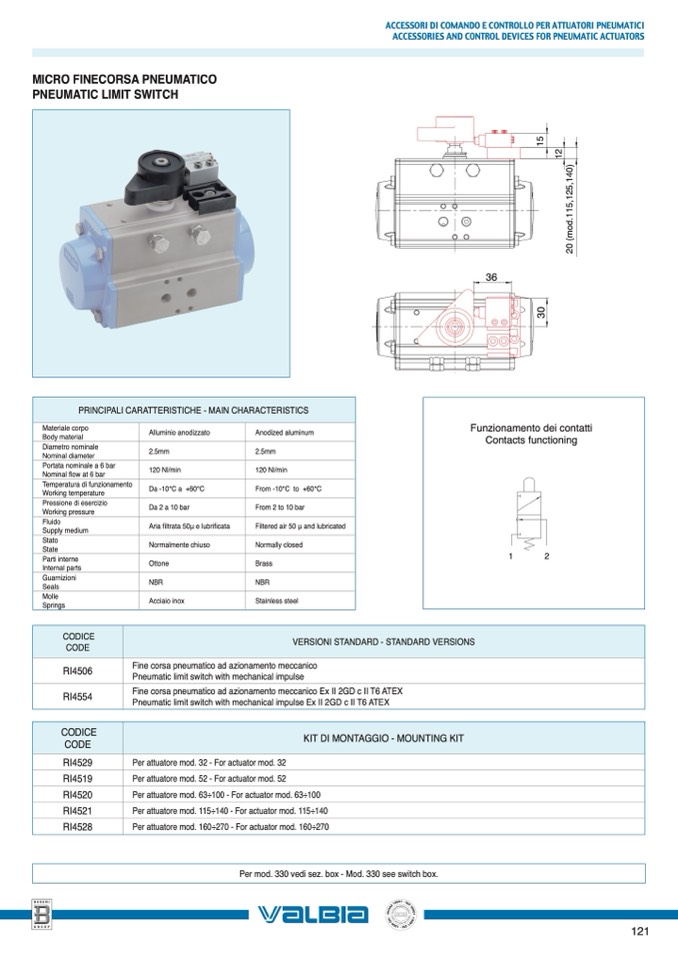

MICRO FINECORSA PNEUMATICO

PNEUMATIC LIMIT SWITCH

PRINCIPALI CARATTERISTICHE - MAIN CHARACTERISTICS

36

Funzionamento dei contatti

Contacts functioning

1

2

Materiale corpo

Body material

Diametro nominale

Nominal diameter

Portata nominale a 6 bar

Nominal flow at 6 bar

Temperatura di funzionamento

Working temperature

Pressione di esercizio

Working pressure

Fluido

Supply medium

Stato

State

Parti interne

Internal parts

Guarnizioni

Seals

Molle

Springs

CODICE

CODE

RI4506

RI4554

CODICE

CODE

RI4529

RI4519

RI4520

RI4521

RI4528

Alluminio anodizzato

2.5mm

120 Nl/min

Da -10°C a +60°C

Da 2 a 10 bar

Aria filtrata 50μ e lubrificata

Normalmente chiuso

Ottone

NBR

Acciaio inox

Anodized aluminum

2.5mm

120 Nl/min

From -10°C to +60°C

From 2 to 10 bar

Filtered air 50 μ and lubricated

Normally closed

Brass

NBR

Stainless steel

VERSIONI STANDARD - STANDARD VERSIONS

Fine corsa pneumatico ad azionamento meccanico

Pneumatic limit switch with mechanical impulse

Fine corsa pneumatico ad azionamento meccanico Ex II 2GD c II T6 ATEX

Pneumatic limit switch with mechanical impulse Ex II 2GD c II T6 ATEX

KIT DI MONTAGGIO - MOUNTING KIT

Per attuatore mod. 32 - For actuator mod. 32

Per attuatore mod. 52 - For actuator mod. 52

Per attuatore mod. 63÷100 - For actuator mod. 63÷100

Per attuatore mod. 115÷140 - For actuator mod. 115÷140

Per attuatore mod. 160÷270 - For actuator mod. 160÷270

Per mod. 330 vedi sez. box - Mod. 330 see switch box.

ACCESSORI DI COMANDO E CONTROLLO PER ATTUATORI PNEUMATICI

ACCESSORIES AND CONTROL DEVICES FOR PNEUMATIC ACTUATORS

3

0

1

5

2

0

(

m

o

d

.

1

1

5

,

1

2

5

,

1

4

0

)

1

2
