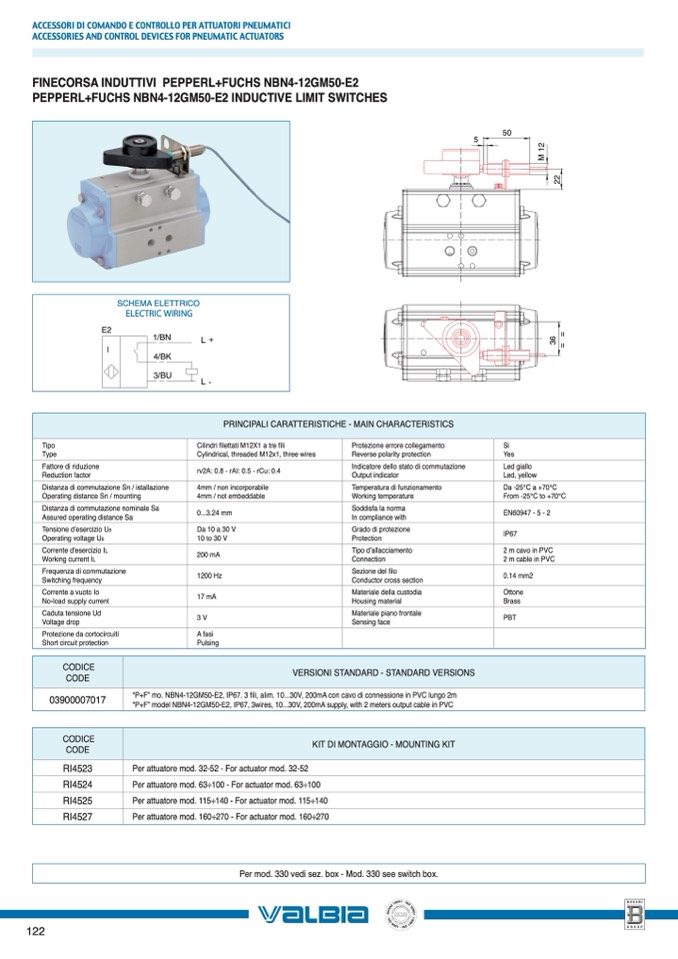

ACCESSORI DI COMANDO E CONTROLLO PER ATTUATORI PNEUMATICI

ACCESSORIES AND CONTROL DEVICES FOR PNEUMATIC ACTUATORS

FINECORSA INDUTTIVI PEPPERL+FUCHS NBN4-12GM50-E2

PEPPERL+FUCHS NBN4-12GM50-E2 INDUCTIVE LIMIT SWITCHES

3

6

=

=

M

1

2

2

2

122

Tipo

Type

Fattore di riduzione

Reduction factor

Cilindri filettati M12X1 a tre fili

Cylindrical, threaded M12x1, three wires

rv2A: 0.8 - rAI: 0.5 - rCu: 0.4

4mm / non incorporabile

4mm / not embeddable

0...3.24 mm

Da 10 a 30 V

10 to 30 V

200 mA

1200 Hz

17 mA

3V

A fasi

Pulsing

SCHEMA ELETTRICO

ELECTRIC WIRING

E2

I

Distanza di commutazione Sn / istallazione

Operating distance Sn / mounting

Distanza di commutazione nominale Sa

Assured operating distance Sa

Protezione errore collegamento

Reverse polarity protection

Indicatore dello stato di commutazione

Output indicator

Temperatura di funzionamento

Working temperature

Soddisfa la norma

In compliance with

Grado di protezione

Protection

Tipo d’allacciamento

Connection

Sezione del filo

Conductor cross section

Materiale della custodia

Housing material

Materiale piano frontale

Sensing face

VERSIONI STANDARD - STANDARD VERSIONS

Si

Yes

Led giallo

Led, yellow

Da -25°C a +70°C

From -25°C to +70°C

EN60947 - 5 - 2

IP67

2 m cavo in PVC

2 m cable in PVC

0.14 mm2

Ottone

Brass

PBT

Tensione d’esercizio U

B

Operating voltage U

B

Corrente d'esercizio IL

Working current IL

Frequenza di commutazione

Switching frequency

Corrente a vuoto Io

No-load supply current

Caduta tensione Ud

Voltage drop

Protezione da cortocircuiti

Short circuit protection

CODICE

CODE

03900007017

CODICE

CODE

RI4523

RI4524

RI4525

RI4527

“P+F” mo. NBN4-12GM50-E2, IP67. 3 fili, alim. 10...30V, 200mA con cavo di connessione in PVC lungo 2m

“P+F” model NBN4-12GM50-E2, IP67, 3wires, 10...30V, 200mA supply, with 2 meters output cable in PVC

KIT DI MONTAGGIO - MOUNTING KIT

Per attuatore mod. 32-52 - For actuator mod. 32-52

Per attuatore mod. 63÷100 - For actuator mod. 63÷100

Per attuatore mod. 115÷140 - For actuator mod. 115÷140

Per attuatore mod. 160÷270 - For actuator mod. 160÷270

1/BN

4/BK

3/BU

L+

L-

PRINCIPALI CARATTERISTICHE - MAIN CHARACTERISTICS

Per mod. 330 vedi sez. box - Mod. 330 see switch box.

50

5
