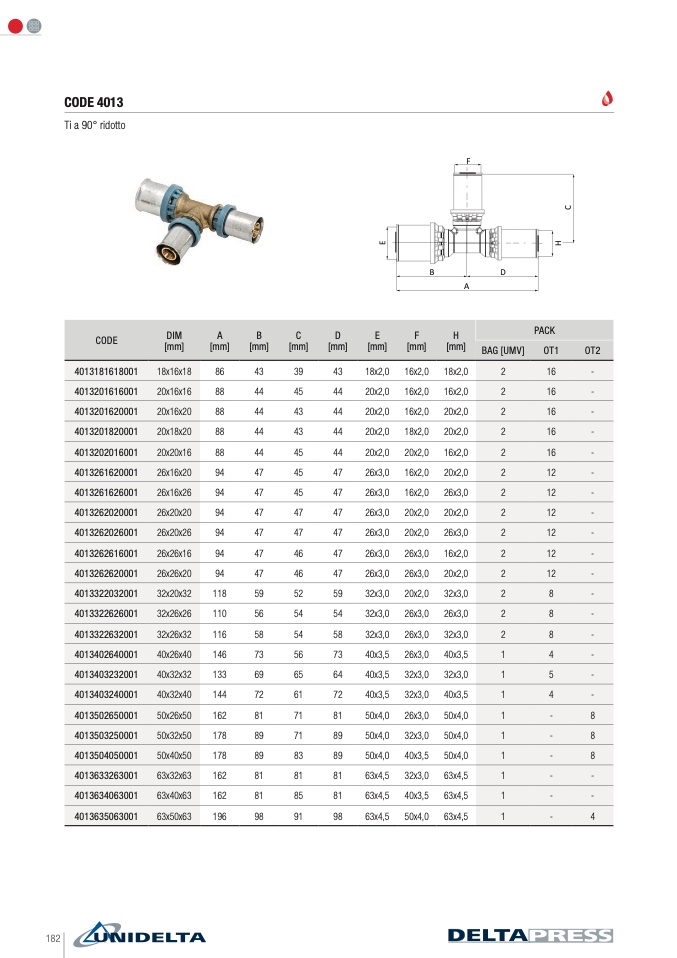

CODE 4013
Ti a 90° ridotto
H
C
E
B
D
F
A
CODE
DIM
[mm]
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
H
[mm]
PACK
BAG [UMV]
OT1
OT2
4013181618001
18x16x18
86
43
39
43
18x2,0
16x2,0
18x2,0
2
16
-
4013201616001
20x16x16
88
44
45
44
20x2,0
16x2,0
16x2,0
2
16
-
4013201620001
20x16x20
88
44
43
44
20x2,0
16x2,0
20x2,0
2
16
-
4013201820001
20x18x20
88
44
43
44
20x2,0
18x2,0
20x2,0
2
16
-
4013202016001
20x20x16
88
44
45
44
20x2,0
20x2,0
16x2,0
2
16
-
4013261620001
26x16x20
94
47
45
47
26x3,0
16x2,0
20x2,0
2
12
-
4013261626001
26x16x26
94
47
45
47
26x3,0
16x2,0
26x3,0
2
12
-
4013262020001
26x20x20
94
47
47
47
26x3,0
20x2,0
20x2,0
2
12
-
4013262026001
26x20x26
94
47
47
47
26x3,0
20x2,0
26x3,0
2
12
-
4013262616001
26x26x16
94
47
46
47
26x3,0
26x3,0
16x2,0
2
12
-
4013262620001
26x26x20
94
47
46
47
26x3,0
26x3,0
20x2,0
2
12
-
4013322032001
32x20x32
118
59
52
59
32x3,0
20x2,0
32x3,0
2
8
-
4013322626001
32x26x26
110
56
54
54
32x3,0
26x3,0
26x3,0
2
8
-
4013322632001
32x26x32
116
58
54
58
32x3,0
26x3,0
32x3,0
2
8
-
4013402640001
40x26x40
146
73
56
73
40x3,5
26x3,0
40x3,5
1
4
-
4013403232001
40x32x32
133
69
65
64
40x3,5
32x3,0
32x3,0
1
5
-
4013403240001
40x32x40
144
72
61
72
40x3,5
32x3,0
40x3,5
1
4
-
4013502650001
50x26x50
162
81
71
81
50x4,0
26x3,0
50x4,0
1
-
8
4013503250001
50x32x50
178
89
71
89
50x4,0
32x3,0
50x4,0
1
-
8
4013504050001
50x40x50
178
89
83
89
50x4,0
40x3,5
50x4,0
1
-
8
4013633263001
63x32x63
162
81
81
81
63x4,5
32x3,0
63x4,5
1
-
-
4013634063001
63x40x63
162
81
85
81
63x4,5
40x3,5
63x4,5
1
-
-
4013635063001
63x50x63
196
98
91
98
63x4,5
50x4,0
63x4,5
1
-
4
