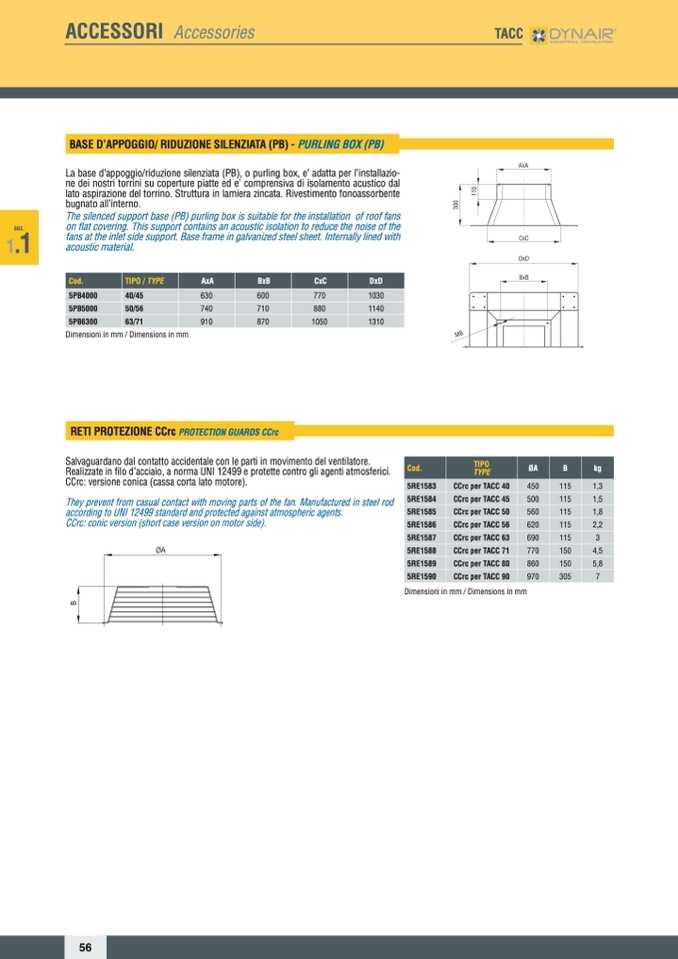

ACCESSORI Accessories

TACC

BASE D’APPOGGIO/ RIDUZIONE SILENZIATA (PB) - PURLING BOX (PB)

La base d’appoggio/riduzione silenziata (PB), o purling box, e’ adatta per l’installazio-

ne dei nostri torrini su coperture piatte ed e’ comprensiva di isolamento acustico dal

lato aspirazione del torrino. Struttura in lamiera zincata. Rivestimento fonoassorbente

bugnato all’interno.

The silenced support base (PB) purling box is suitable for the installation of roof fans

on flat covering. This support contains an acoustic isolation to reduce the noise of the

fans at the inlet side support. Base frame in galvanized steel sheet. Internally lined with

acoustic material.

Dimensioni in mm / Dimensions in mm

RETI PROTEZIONE CCrc PROTECTION GUARDS CCrc

Salvaguardano dal contatto accidentale con le parti in movimento del ventilatore.

Realizzate in filo d’acciaio, a norma UNI 12499 e protette contro gli agenti atmosferici.

CCrc: versione conica (cassa corta lato motore).

They prevent from casual contact with moving parts of the fan. Manufactured in steel rod

according to UNI 12499 standard and protected against atmospheric agents.

CCrc: conic version (short case version on motor side).

sez.

1

.1

Cod. TIPO / TYPE AxA BxB CxC

DxD

5PB4000 40/45 630 600 770

1030

5PB5000 50/56 740 710 880

1140

5PB6300 63/71 910 870 1050

1310

Cod.

TIPO

TYPE

ØA

B

kg

5RE1583

CCrc per TACC 40

450

115

1,3

5RE1584

CCrc per TACC 45

500

115

1,5

5RE1585

CCrc per TACC 50

560

115

1,8

5RE1586

CCrc per TACC 56

620

115

2,2

5RE1587

CCrc per TACC 63 690

115

3

5RE1588

CCrc per TACC 71

770

150

4,5

5RE1589

CCrc per TACC 80

860

150

5,8

5RE1590

CCrc per TACC 90

970

305

7

Dimensioni in mm / Dimensions in mm

56
