housings DP BIG for cartridges BIG SX
D
P
B
I
G
F
I
L
T
E
R
H
O
U
S
I
N
G
S
O
N
S
E
V
I
R
A
L
N
-
E
N
D
L
Y
R
I
A
F
T
M
ATLAS
green
R
I

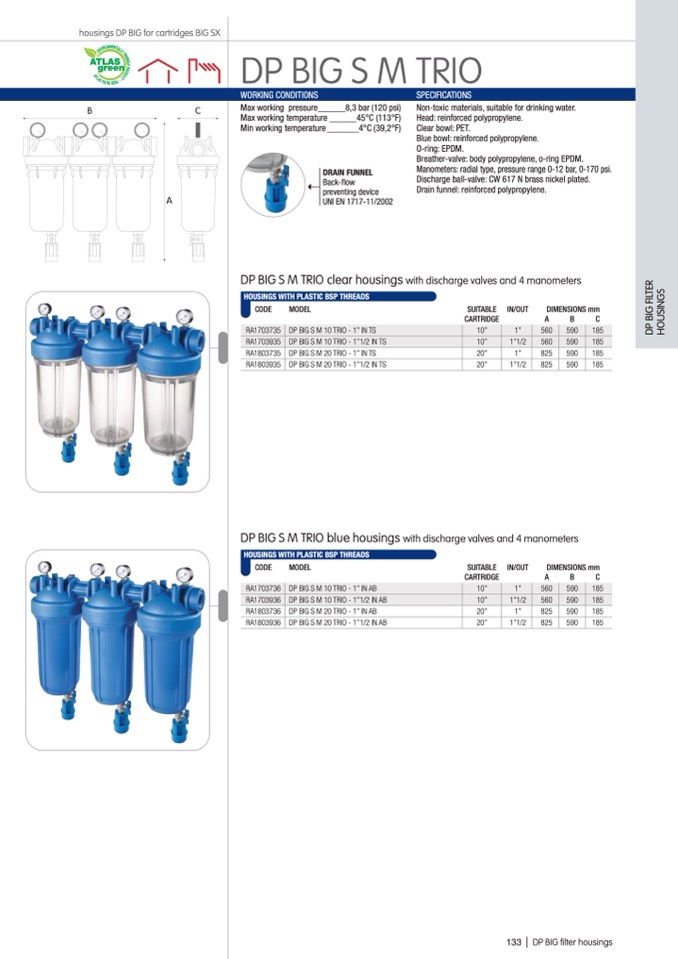

DP BIG S M TRIO
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
Max working pressure______8,3 bar (120 psi)
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
DRAIN FUNNEL
Back-flow
preventing device
UNI EN 1717-11/2002
Non-toxic materials, suitable for drinking water.
Head: reinforced polypropylene.
Clear bowl: PET.
Blue bowl: reinforced polypropylene.
O-ring: EPDM.
Breather-valve: body polypropylene, o-ring EPDM.
Manometers: radial type, pressure range 0-12 bar, 0-170 psi.
Discharge ball-valve: CW 617 N brass nickel plated.
Drain funnel: reinforced polypropylene.
DP BIG S M TRIO clear housings with discharge valves and 4 manometers
HOUSINGS WITH PLASTIC BSP THREADS
CODE
RA1803735
RA1803935
MODEL
SUITABLE
CARTRIDGE
IN/OUT
DIMENSIONS mm
DP BIG S M TRIO blue housings with discharge valves and 4 manometers
HOUSINGS WITH PLASTIC BSP THREADS
CODE
RA1803736
RA1803936
MODEL
SUITABLE
CARTRIDGE
IN/OUT
DIMENSIONS mm
A
B
C
A
B
C
185
185
133 | DP BIG filter housings
185
185
➝
RA1703735
DP BIG S M 10 TRIO - 1” IN TS
10”
1”
560
590
185
RA1703935
DP BIG S M 10 TRIO - 1”1/2 IN TS
10”
1”1/2
560
590
185
DP BIG S M 20 TRIO - 1” IN TS
20”
1”
825
590
DP BIG S M 20 TRIO - 1”1/2 IN TS
20”
1”1/2
825
590
RA1703736
DP BIG S M 10 TRIO - 1” IN AB
10”
1”
560
590
185
RA1703936
DP BIG S M 10 TRIO - 1”1/2 IN AB
10”
1”1/2
560
590
185
DP BIG S M 20 TRIO - 1” IN AB
20”
1”
825
590
DP BIG S M 20 TRIO - 1”1/2 IN AB
20”
1”1/2
825
590
