A

OD 2,40” x ID 1,10”

AC 10 SX BS 0,2 mcr

AC 10 SX BS 0,45 mcr

AC 20 SX BS 0,2 mcr

AC 20 SX BS 0,45 mcr

HEIGHT FILTRATION

MICRON

10”

0,2

10”

0,45

20”

0,2

20”

0,45

FLOW RATE l/h

A

B

C

1000

250

70

30

1000

250

70

30

1800

505

70

30

1800

505

70

30

AC pleated polypropylene borosilicate

Fine sediment filtration

Average life-span: 3-6 months.

Maintenance: none.

Remark - Use a pre-filter to protect the cartridge.

C

B

C

A

B

AC cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

- BX proprietary configuration with double o-ring

collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

MODELS:

- AC series 10” and 20” OD 2.40” ID 1.10”, SX,

BX configurations.

VARIANTS AVAILABLE

ON MINIMUM QUANTITY:

- AC series with height 30”, 40”

- AC-K series with polypropylene-borosilicate,

polypropylene or polyester filter medium;

polypropylene moulded armouring, inner core, end-

caps; height 10”, 20”, 30”, 40”; filter rates from

0.2 to 55 micron; SX, BX, P8, P7, C7 configurations.

CERTIFICATIONS

AC cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

WORKING CONDITIONS

Max working temperature ______85°C (185°F)

Min working temperature _______4°C (39,2°F)

SPECIFICATIONS

Non-toxic materials, suitable for drinking water.

Filter medium: polypropylene-borosilicate.

Inner core and end caps: polypropylene.

Flat seals SX: BUNA

®

.

O-rings BX: EPDM.

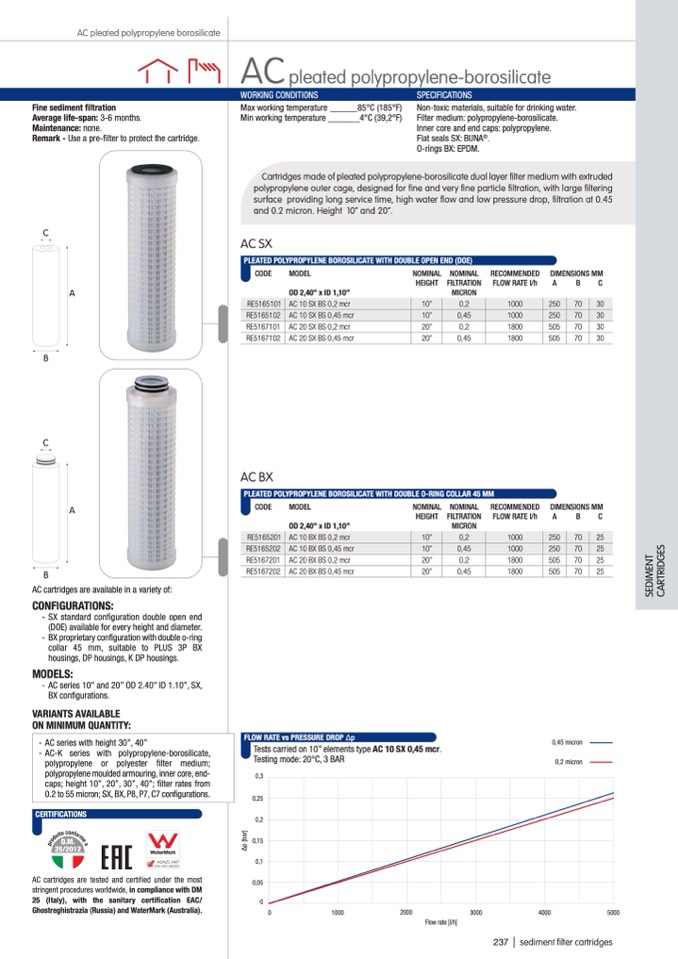

AC

pleated polypropylene-borosilicate

Cartridges made of pleated polypropylene-borosilicate dual layer filter medium with extruded

polypropylene outer cage, designed for fine and very fine particle filtration, with large filtering

surface providing long service time, high water flow and low pressure drop, filtration at 0.45

and 0.2 micron. Height 10” and 20”.

AC SX

PLEATED POLYPROPYLENE BOROSILICATE WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RE5165101

RE5165102

RE5167101

RE5167102

AC BX

PLEATED POLYPROPYLENE BOROSILICATE WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RE5165201

RE5165202

RE5167201

RE5167202

OD 2,40” x ID 1,10”

AC 10 BX BS 0,2 mcr

AC 10 BX BS 0,45 mcr

AC 20 BX BS 0,2 mcr

AC 20 BX BS 0,45 mcr

HEIGHT

10”

10”

20”

20”

FILTRATION

MICRON

0,2

0,45

0,2

0,45

FLOW RATE l/h

1000

1000

1800

1800

A

B

250

70

250

70

505

70

505

70

C

25

25

25

25

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type AC 10 SX 0,45 mcr.

Testing mode: 20°C, 3 BAR

0,3

0,25

0,2

0,15

0,1

0,05

0

0,45 micron

0,2 micron

0

1000

2000

3000

4000

5000

Flow rate [l/h]

237 | sediment filter cartridges
