Sediment filtration.
Average life-span: up to 24 months.
Maintenance: wash every month at least.
C
B
C
A
B
RL are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
- CX proprietary configuration with double o-ring
collar 57 mm, suitable to PLUS 3P CX, K DP
housings.
MODELS:
- RL MIGNON series 5”M OD 1.77” ID 0.71, SX
configuration.
- RL series from 4” to 40” OD 2.40” ID 1.10”,
SX, BX, CX configurations.
VARIANTS AVAILABLE
ON MINIMUM QUANTITY:
- RL SX series at 30” and 40”.
CERTIFICATIONS
RL cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification ACS (France),
EAC/Ghostreghistrazia (Russia) and WaterMark
(Australia).
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter medium: polyester net.
Armouring and end caps: polypropylene.
Flat seals SX: SEBS with antimicrobial technology.
O-rings BX and CX: EPDM.
A
HEIGHT
5” M
4”
5”
7”
10”
20”
FILTRATION
MICRON
FLOW RATE l/h
A
B
C
238 | sediment filter cartridges

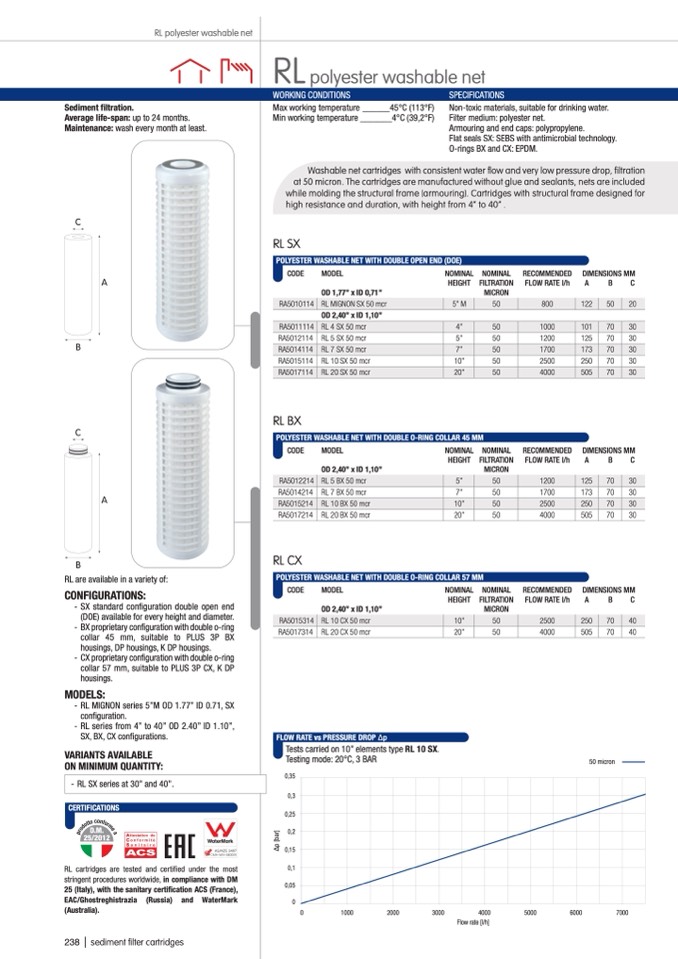

RL polyester washable net
RL
polyester washable net
Washable net cartridges with consistent water flow and very low pressure drop, filtration
at 50 micron. The cartridges are manufactured without glue and sealants, nets are included
while molding the structural frame (armouring). Cartridges with structural frame designed for
high resistance and duration, with height from 4” to 40” .
RL SX
POLYESTER WASHABLE NET WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5010114
RA5011114
RA5012114
RA5014114
RA5015114
RA5017114
RL BX
OD 1,77” x ID 0,71”
RL MIGNON SX 50 mcr
OD 2,40” x ID 1,10”
RL 4 SX 50 mcr
RL 5 SX 50 mcr
RL 7 SX 50 mcr
RL 10 SX 50 mcr
RL 20 SX 50 mcr
50
800
122
50
20
50
1000
101
70
30
50
1200
125
70
30
50
1700
173
70
30
50
2500
250
70
30
50
4000
505
70
30
POLYESTER WASHABLE NET WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5012214
RA5014214
RA5015214
RA5017214
RL CX
RL 5 BX 50 mcr
5”
RL 7 BX 50 mcr
7”
RL 10 BX 50 mcr
10”
RL 20 BX 50 mcr
20”
RA5015314
RA5017314
OD 2,40” x ID 1,10”
RL 10 CX 50 mcr
RL 20 CX 50 mcr
2500
250
4000
505
OD 2,40” x ID 1,10”
POLYESTER WASHABLE NET WITH DOUBLE O-RING COLLAR 57 MM
HEIGHT
FILTRATION
MICRON
50
50
50
50
FLOW RATE l/h
A
B
C
1200
125
70
30
1700
173
70
30
2500
250
70
30
4000
505
70
30
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type RL 10 SX.
Testing mode: 20°C, 3 BAR
50 micron
0,35
0,3
0,25
0,2
0,15
0,1
0,05
0
0
1000
2000
3000
4000
Flow rate [l/h]
5000
6000
7000
HEIGHT
10”
20”
FILTRATION
MICRON
50
50
FLOW RATE l/h
A
B
70
70
C
40
40
Δ
p
[
b
a
r
]
