A
OD 2,40” x ID 1,10”
RL A 10 SX 70 mcr
RL A 20 SX 70 mcr
HEIGHT FILTRATION
MICRON
10”
70
20”
70
FLOW RATE l/h
A
B
C
2500
250
70
30
4000
505
70
30
A

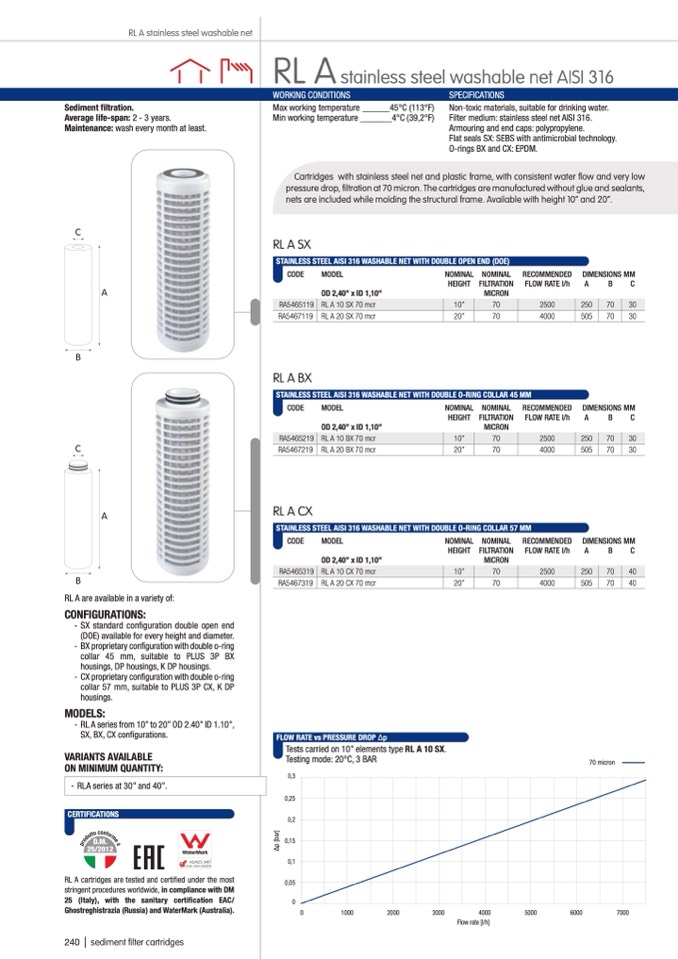

240 | sediment filter cartridges
RL A stainless steel washable net
Sediment filtration.
Average life-span: 2 - 3 years.
Maintenance: wash every month at least.
C
B
C
B
RL A are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
- CX proprietary configuration with double o-ring
collar 57 mm, suitable to PLUS 3P CX, K DP
housings.
MODELS:
- RL A series from 10” to 20” OD 2.40” ID 1.10”,
SX, BX, CX configurations.
VARIANTS AVAILABLE
ON MINIMUM QUANTITY:
- RLA series at 30” and 40”.
CERTIFICATIONS
RL A cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification EAC/
Ghostreghistrazia (Russia) and WaterMark (Australia).
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter medium: stainless steel net AISI 316.
Armouring and end caps: polypropylene.
Flat seals SX: SEBS with antimicrobial technology.
O-rings BX and CX: EPDM.
RL A
stainless steel washable net AISI 316
Cartridges with stainless steel net and plastic frame, with consistent water flow and very low
pressure drop, filtration at 70 micron. The cartridges are manufactured without glue and sealants,
nets are included while molding the structural frame. Available with height 10” and 20”.
RL A SX
STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5465119
RA5467119
RL A BX
STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5465219
RA5467219
RL A CX
OD 2,40” x ID 1,10”
RL A 10 BX 70 mcr
RL A 20 BX 70 mcr
HEIGHT FILTRATION
MICRON
10”
70
20”
70
FLOW RATE l/h
A
B
C
2500
250
70
30
4000
505
70
30
STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE O-RING COLLAR 57 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5465319
RA5467319
OD 2,40” x ID 1,10”
RL A 10 CX 70 mcr
RL A 20 CX 70 mcr
2500
250
4000
505
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type RL A 10 SX.
Testing mode: 20°C, 3 BAR
70 micron
0,3
0,25
0,2
0,15
0,1
0,05
0
0
1000
2000
3000
4000
Flow rate [l/h]
5000
6000
7000
HEIGHT
10”
20”
FILTRATION
MICRON
70
70
FLOW RATE l/h
A
B
70
70
C
40
40
Δ
p
[
b
a
r
]
